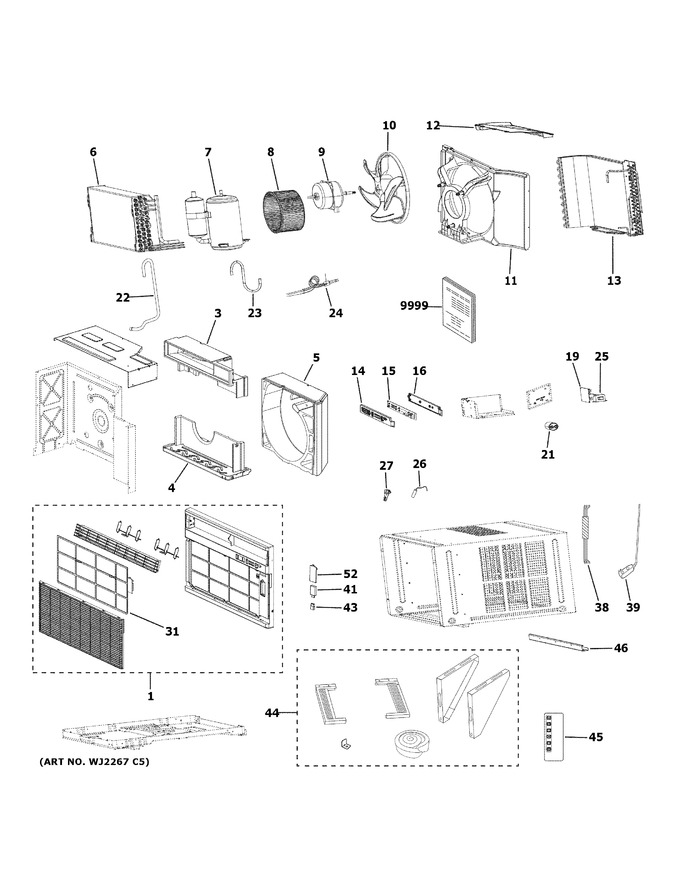

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X24435 | Frontpanel Assembly |
|
- | |||||
| 3 | WJ76X25899 | Indoor Fan Shroud, Upper |
|
- | |||||
| 4 | WJ76X25900 | Indoor Fan Shroud, Middle |
|
- | |||||
| 5 | WJ76X25901 | Indoor Fan Shroud, Lower |
|
- | |||||
| 6 | WJ87X25903 | Evaporator Asm |
|
- | |||||
| 7 | WJ98X22112 | Compressor |
|
- | |||||
| 8 | WJ73X25902 | Indoor Fan Blade |
|
- | |||||
| 9 | WJ94X25904 | Fan Motor |
|
- | |||||
| 10 | WJ73X20130 | Axial Fan |
|
- | |||||
| 11 | WJ76X23948 | Outdoor Fan Shroud |
|
- | |||||
| 12 | WJ76X20154 | Rear Cover Board |
|
- | |||||
| 13 | WJ88X25905 | Condenser Asm |
|
- | |||||
| 14 | WJ26X23868 | Ui Board Cover |
|
- | |||||
| 15 | WJ26X28501 | Ui Board |
|
- | |||||
| 16 | WJ26X23867 | Ui Board Support |
|
- | |||||
| 19 | WJ26X27741 | Main Control Board |
|
- | |||||
| 21 | WJ20X24430 | Capacitor |
|
- | |||||
| 22 | WJ53X26594 | Suction Tube |
|
- | |||||
| 23 | WJ53X25908 | Discharge Tube |
|
- | |||||
| 24 | WJ53X25910 | Capillary Tube |
|
- | |||||
| 25 | WJ27X22872 | Transformer |
|
$ 9.28 | |||||
| 26 | WJ26X22173 | Thermistor |
|
- | |||||
| 27 | WJ01X23351 | Thermistor Holder |
|
- | |||||
| 31 | WJ85X23947 | Filter |
|
- | |||||
| 38 | WJ36X10023 | Harness |
|
- | |||||
| 39 | WJ35X10175 | Power Cord |
|
- | |||||
| 40 | WJ35X23134 | Wi-fi Wiring Harness |
|
- | |||||
| 41 | WJ26X28017 | Wi-fi Module |
|
- | |||||
| 43 | WJ35X23893 | Wiring Harness |
|
- | |||||
| 44 | WJ01X25911 | Installation Parts |
|
- | |||||
| 45 | WJ26X27734 | Remote |
|
- | |||||
| 46 | WJ86X23672 | Top Rail |
|
- | |||||
| 52 | WJ76X23891 | Cover Board |
|
- | |||||
| 9999 | 49-5000567 | Pm Owners And Install |
|
- | |||||
| 9999 | 31-5000575 | Pm Mini Manual And Wiring |
|
- |
