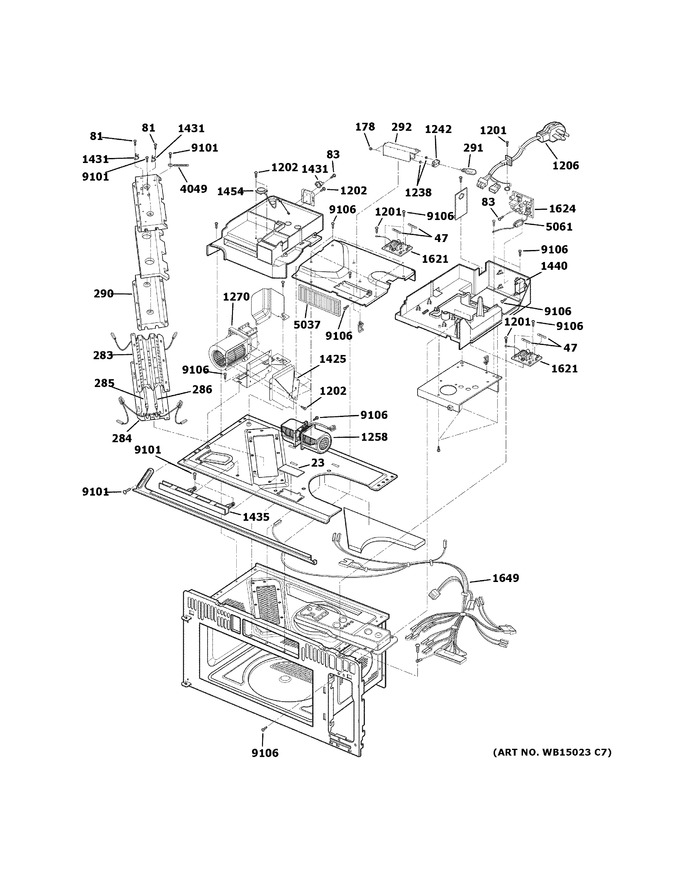

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	WB36X40675		Glass Cover		Appelez-nous	-
47	WG02F06332		Fuse   (Replaces: WB27X10928)			Immediately	$ 14.29
81	WB02X10728		Screw - Hand		Appelez-nous	-
83	WB01X10122		Screw Handle		Appelez-nous	-
178	WB02X32755		Nut Hexagon		Appelez-nous	-
283	WB06X32804		Reflector		Appelez-nous	-
284	WB06X32806		Supporter		Appelez-nous	-
285	WB44X10057		Heater,halogen		Appelez-nous	-
286	WB44X10056		Heater,halogen		Appelez-nous	-
290	WB06X32799		Heater Cover		Appelez-nous	-
291	WB25X25393		Lamp Halogen		Appelez-nous	-
292	WB02X32757		Lamp Cover		Appelez-nous	-
1201	WB02X10745		Screw - Binding Head		Appelez-nous	-
1202	WB02X10730		Screw - Pan Head Tapping		Appelez-nous	-
1206	WB18X10419		Power Cord Asm		Appelez-nous	-
1238	WB01X10414		Supporter,housing		Appelez-nous	-
1242	WG02L02137		Holder Assembly   (Replaces: WB06X10554)				$ 29.41
1258	WB26X10244		Motor, Ac Ventilation		Appelez-nous	-
1270	WB26X10245		Motor, Ac Blower		Appelez-nous	-
1425	WB39X32805		Air Guide		Appelez-nous	-
1431	WB20X10048		Thermostat		Appelez-nous	-
1435	WB02X32758		Holder,wire		Appelez-nous	-
1440	WB27X36065		Capacitor		Appelez-nous	-
1454	WG02F01437		Sensor Asm   (Replaces: WB27X10857)				$ 113.04
1621	WB02X35396		Noise Filter Board		Appelez-nous	-
1624	WB27X32756		Power Board		Appelez-nous	-
1649	WB18X40673		Main Harness		Appelez-nous	-
4049	WB02X11233		Holder Wire		Appelez-nous	-
5037	WB02X35637		Charcoal Filter		Appelez-nous	-
5061	WB06X40674		Filter		Appelez-nous	-
9101	WB1X1514		Screw Tapping		Appelez-nous	-
9106	WB1X1515		Screw Tapping		Appelez-nous	-
