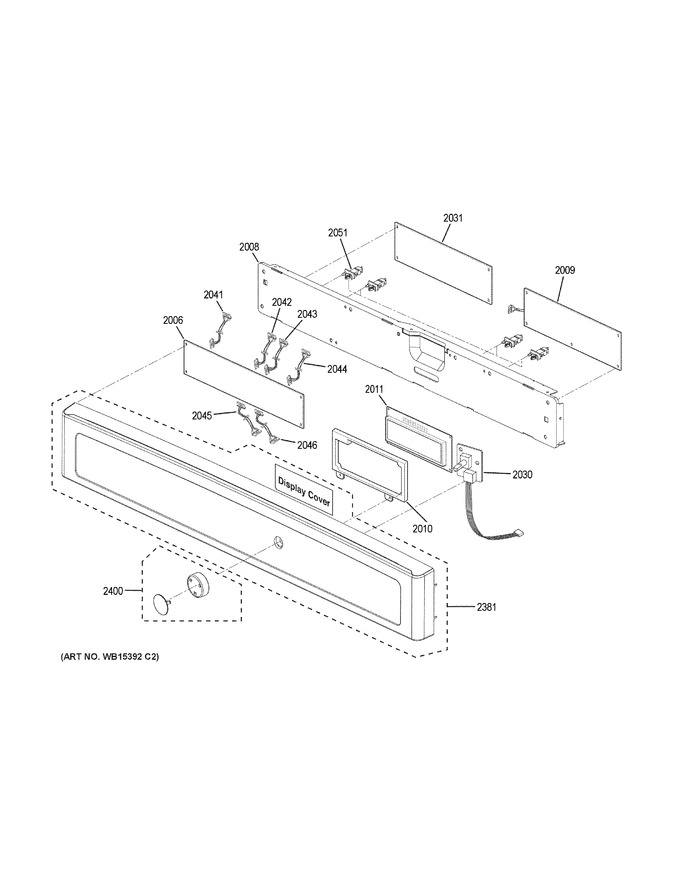

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2006 | WB27X22130 | Control Board |
|
- | |||||
| 2008 | WB34X22089 | Control Board Bracket |
|
- | |||||
| 2009 | WB27X22129 | Relay Board |
|
- | |||||
| 2010 | WB02X22087 | Display Holder |
|
- | |||||
| 2011 | WB06X10835 | Vf Display |
|
- | |||||
| 2030 | WG02L09547 | Encoder Board (Replaces: WB27X11022) |
|
$ 79.32 | |||||
| 2031 | WB27X22085 | Power Board |
|
- | |||||
| 2041 | WB18X22138 | Relay Signal Harness |
|
- | |||||
| 2042 | WB18X22135 | Encoder Signal Harness |
|
- | |||||
| 2043 | WB18X22137 | Touch Signal Harness |
|
- | |||||
| 2044 | WB18X22136 | Vfd Signal Harness |
|
- | |||||
| 2045 | WB18X22140 | Comm Signal Harness |
|
- | |||||
| 2046 | WB18X22139 | Power Board Harness |
|
- | |||||
| 2051 | WB02X11322 | Supporter,board |
|
- | |||||
| 2381 | WB56X38546 | Control Panel Asm White Led |
|
- | |||||
| 2400 | WB03X35392 | Stainless Steel Knob |
|
- |
