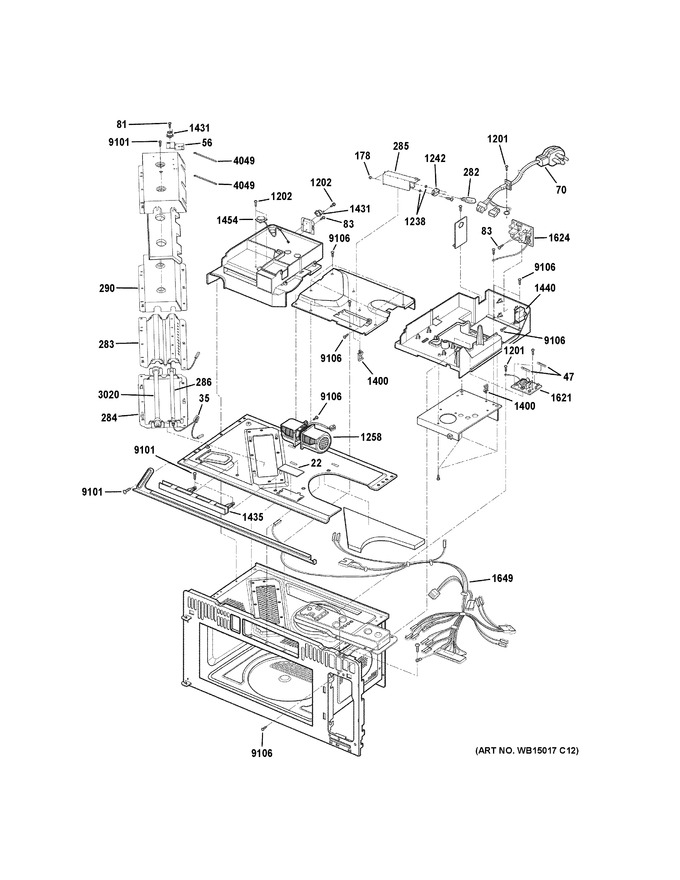

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	WB36X10345		Glass		Appelez-nous	-
35	WB18X10290		Harness		Appelez-nous	-
47	WG02F06332		Fuse   (Replaces: WB27X10388)			Immediately	$ 15.88
56	WB02X10721		Bracket- Magnetron		Appelez-nous	-
70	WB18X21106		Power Cord Asm		Appelez-nous	-
81	WB02X10728		Screw - Hand		Appelez-nous	-
83	WB01X10122		Screw Handle		Appelez-nous	-
178	WB01X10411		Nut Hexagon				$ 3.88
282	WG03F00381		Lamp, Halogen 120v/20w   (Replaces: WB25X10019)			Immediately	$ 31.83
283	WB06X10846		Reflector		Appelez-nous	-
284	WB06X10847		Supporter		Appelez-nous	-
285	WB02X11291		Cover Lamp		Appelez-nous	-
286	WB21X10142		Heater Halogen		Appelez-nous	-
290	WB06X10845		Cover,heater		Appelez-nous	-
1201	WB02X10745		Screw - Binding Head		Appelez-nous	-
1202	WB02X10730		Screw - Pan Head Tapping		Appelez-nous	-
1238	WB01X10414		Supporter,housing		Appelez-nous	-
1242	WG02L02137		Holder Assembly   (Replaces: WB06X10554)				$ 29.41
1258	WB26X10100		Motor Vent		Appelez-nous	-
1400	WB02X10778		Wb02x10532		Appelez-nous	-
1431	WB20X10048		Thermostat		Appelez-nous	-
1435	WB06X10839		Holder,wire		Appelez-nous	-
1440	WB27X10808		Capacitor		Appelez-nous	-
1454	WG02F01437		Sensor Asm   (Replaces: WB27X10857)				$ 125.60
1621	WB27X21136		Noise Filter Board		Appelez-nous	-
1624	WB27X11110		Pcb Asm		Appelez-nous	-
1649	WB18X21134		Harness,single		Appelez-nous	-
3020	WB21X10143		Heater Miraclon		Appelez-nous	-
4049	WB02X11233		Holder Wire		Appelez-nous	-
9101	WB1X1514		Screw Tapping		Appelez-nous	-
9106	WB1X1515		Screw Tapping		Appelez-nous	-
