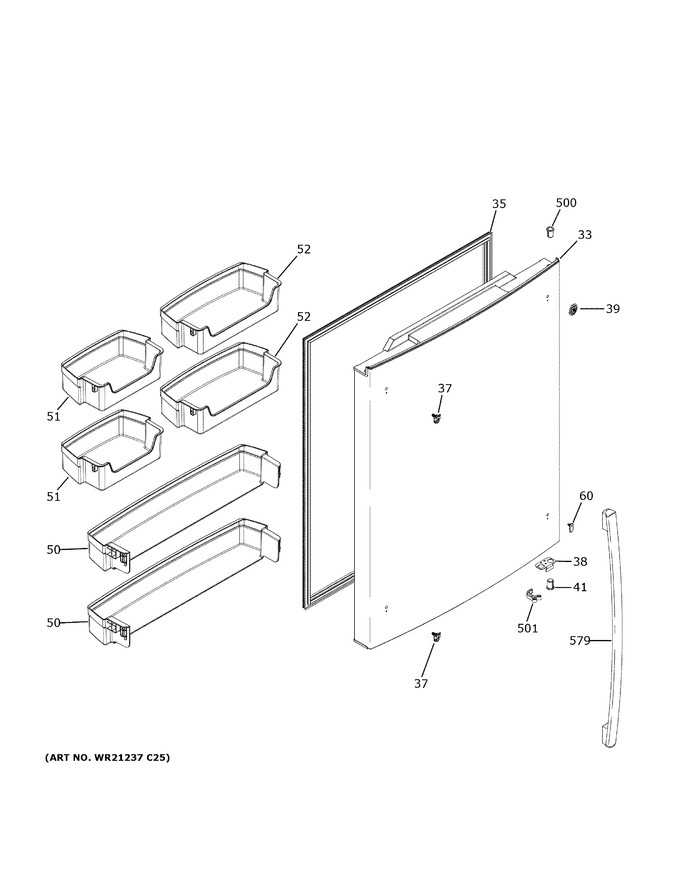

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WR78X24850 | Door Foam Ff Asm Ss |
|
- | |||||
| 35 | WR14X25706 | Gasket Ff Door Dg |
|
- | |||||
| 37 | WR01A02427 | Fastener Handle Asm (Replaces: WR01X25070) |
|
Immediately | $ 7.15 | ||||
| 38 | WR02X24874 | Stop Door |
|
- | |||||
| 39 | WR04X29375 | Gea Badge Flat Chrome |
|
- | |||||
| 41 | WR02X24875 | Hinge Bushing Bb |
|
- | |||||
| 50 | WR71X24865 | Shelf Door Full |
|
- | |||||
| 51 | WR71X24867 | Shelf Door Module |
|
- | |||||
| 52 | WR71X24866 | Shelf Door Module |
|
- | |||||
| 60 | WR02X25409 | Plug Button Ss |
|
- | |||||
| 500 | WR02X24876 | Hinge Bushing Bb |
|
- | |||||
| 501 | WR02X24877 | Force Closure |
|
- | |||||
| 579 | WR12X36385 | Stainless Refrigerator Handle |
|
- |
