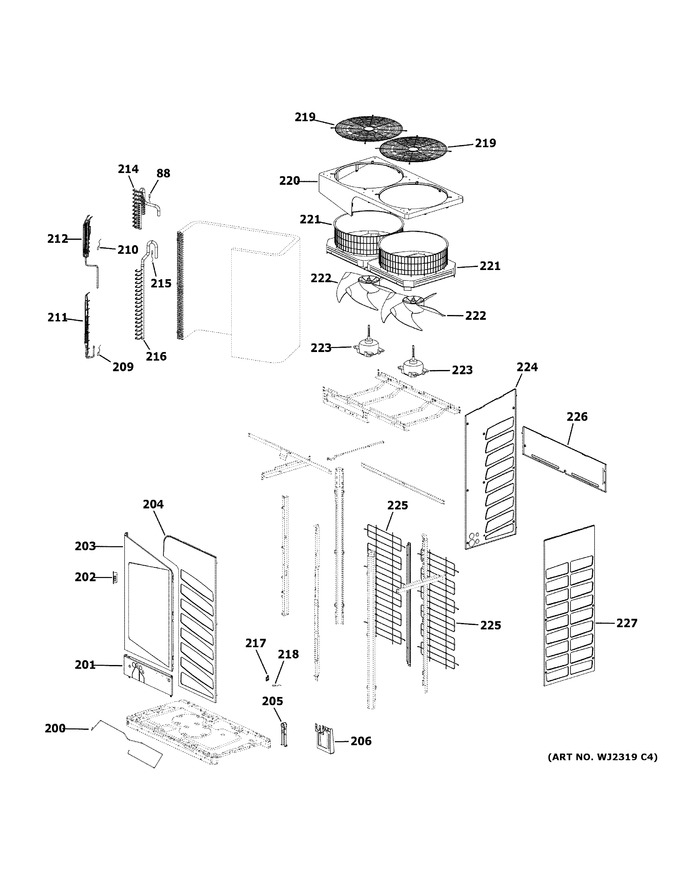

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 88 | WP26X26753 | Toci1 Sensor |
|
- | |||||
| 200 | WP27X28252 | Base Pan Heater |
|
- | |||||
| 201 | WP71X28219 | Lower Front Panel |
|
- | |||||
| 202 | WP01X26749 | Handle |
|
- | |||||
| 203 | WP71X26743 | Service Panel |
|
- | |||||
| 204 | WP71X26744 | Front Panel |
|
- | |||||
| 205 | WP65X26089 | Support Plate |
|
- | |||||
| 206 | WP65X26015 | Valve Seat |
|
- | |||||
| 209 | WP26X26754 | Tdef2 Sensor |
|
- | |||||
| 210 | WP26X26027 | Tdef Sensor |
|
- | |||||
| 211 | WP53X28246 | Lower Liquid Header |
|
- | |||||
| 212 | WP53X28245 | Upper Liquid Header |
|
- | |||||
| 214 | WP53X27078 | Upper Gas Header |
|
- | |||||
| 215 | WP26X26755 | Toci2 Sensor |
|
- | |||||
| 216 | WP53X27079 | Lower Gas Header |
|
- | |||||
| 217 | WP65X26751 | Sensor Clip |
|
- | |||||
| 218 | WP26X26756 | Tao Sensor |
|
- | |||||
| 219 | WP71X27014 | Top Grille |
|
- | |||||
| 220 | WP71X26087 | Top Cover |
|
- | |||||
| 221 | WP76X26025 | Fan Shroud |
|
- | |||||
| 222 | WP73X26021 | Fan Blade |
|
- | |||||
| 223 | WP94X28234 | Outdoor Fan Motor |
|
- | |||||
| 224 | WP71X26739 | Right Side Panel |
|
- | |||||
| 225 | WP71X26017 | Grille |
|
- | |||||
| 226 | WP71X26745 | Back Guard |
|
- | |||||
| 227 | WP71X26738 | Left Side Panel |
|
- |
