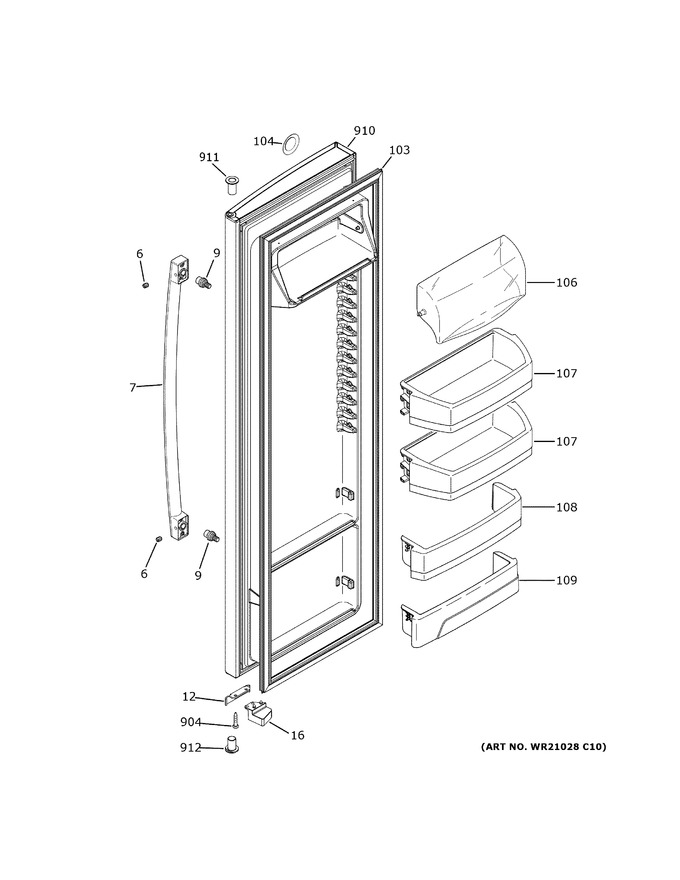

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR01A01440		Set Screw   (Replaces: WR01X10450)				$ 8.58
7	WR12X31686		Black Handle Door Asm		Appelez-nous	-
9	WR01A01801		Door Handle Fastener   (Replaces: WR01X11007)			Immediately	$ 11.44
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 35.73
16	WR01F01557		Cam Closure Ff Black   (Replaces: WR02X10779)				$ 32.88
103	WR24X20456		Gasket Door Ff Dg		Appelez-nous	-
104	WR04X29209		Black Ge Badge		Appelez-nous	-
106	WR71X38317		Door Dairy		Appelez-nous	-
107	WR71X10781		Door Bin Ff Adj		Appelez-nous	-
108	WR71X10782		Shelf Module Fixed Ff				$ 22.35
109	WR71X38319		Fixed Shelf Ff		Appelez-nous	-
904	WR01A00637		Scr 10-16   (Replaces: WR01X10611)				$ 3.57
910	WR78X12852		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
