Freezer Door
Freezer Section
Freezer Shelves
Fresh Food Door
Fresh Food Section
Fresh Food Shelves
Ice Maker & Dispenser
Lokring Connectors
Machine Compartment
SELECT A DIAGRAM
New Model Search:

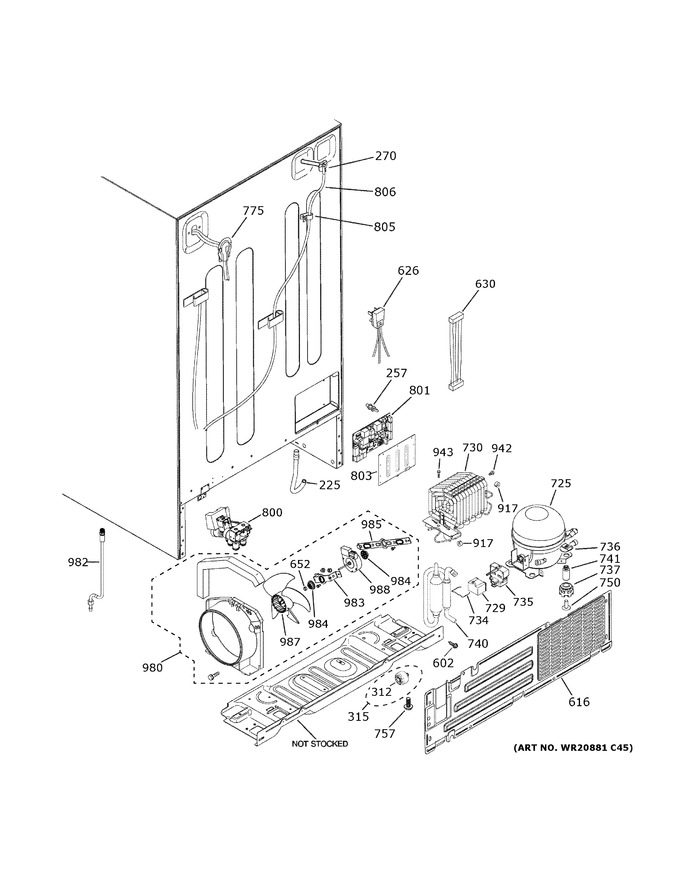

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 225 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 32.88 | ||||
| 257 | WR02X10663 | Stand Off |
|
- | |||||
| 270 | WG03F00304 | Grommet And Tube Asm (Replaces: WR17X11168) |
|
$ 21.44 | |||||
| 312 | WG03L06838 | Wheel Mobility (Replaces: WR02X10695) |
|
$ 17.15 | |||||
| 315 | WR02X11998 | Mobility Wheel Kit |
|
- | |||||
| 602 | WR01X10617 | Scr 1/4-14 Ab Ihw 3/4 S |
|
- | |||||
| 616 | WR82X22767 | Cover Access Asm |
|
- | |||||
| 626 | WR23X29305 | Harness Cab Lower |
|
- | |||||
| 630 | WR23X10709 | Harness Board Indiv |
|
- | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.57 | |||||
| 725 | WR87X40771 | Compressor Meizhi |
|
- | |||||
| 729 | WR55X23731 | Capacitor 12 Uf |
|
- | |||||
| 730 | WR87X41927 | Condenser 10 Pass |
|
- | |||||
| 734 | WR02X26153 | Clip Retainer Mei |
|
- | |||||
| 735 | WR08X31586 | Overload Ptcr Combo |
|
- | |||||
| 736 | WR2X8203 | Clip |
|
- | |||||
| 737 | WR02X40305 | Grommet |
|
- | |||||
| 740 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 775 | WR17X13124 | Cover Water Line |
|
- | |||||
| 800 | WR57X30891 | Valve Isolation Asm |
|
- | |||||
| 801 | WR55X40505 | Main Control Board |
|
- | |||||
| 803 | WR02X40325 | Main Control Board Cover |
|
- | |||||
| 805 | WR1X5278 | Cable Clamp |
|
- | |||||
| 806 | WR01F01881 | Tube Plastic (Replaces: WR17X11625) |
|
$ 14.29 | |||||
| 917 | WR02X13573 | Sound Damper |
|
- | |||||
| 942 | WR01X10654 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 943 | WR01X25308 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 980 | WR60X29573 | Condenser Fan & Housing |
|
- | |||||
| 982 | WR02X13774 | Tube Lead |
|
- | |||||
| 983 | WG03F00071 | Bracket Cond Fan (mtg) (Replaces: WR02X11863) |
|
Immediately | $ 24.30 | ||||
| 984 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 6.52 | ||||
| 985 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 987 | WR60X24484 | Blade Conf Fan Asm |
|
- | |||||
| 988 | WG03F00433 | Motor Dc Cond Fan (Replaces: WR60X10209) |
|
Immediately | $ 95.65 |
