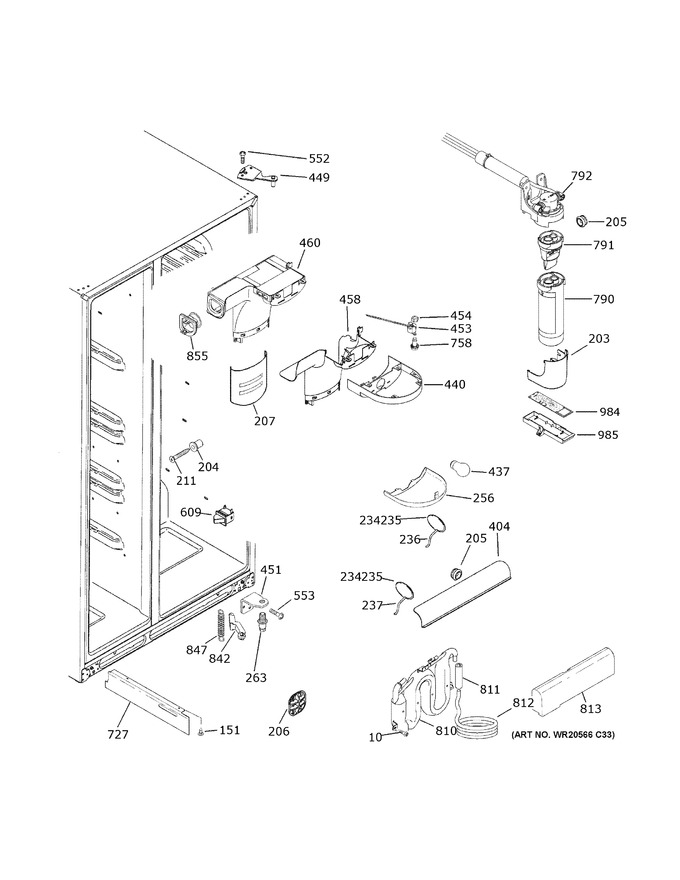

SELECT A DIAGRAM

Freezer Door


Freezer Section


Freezer Shelves


Fresh Food Door


Fresh Food Section


Fresh Food Shelves


Ice Maker & Dispenser


Lokring Connectors


Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Screw 8-18 Ba Por 5/8 Ss		Appelez-nous	-
151	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.57
203	WR17X34485		Xwfe Filter Cover		Appelez-nous	-
204	WR01A00968		Support Shelf   (Replaces: WR02X12187)			Immediately	$ 3.57
205	WR01F00849		Grommet   (Replaces: WR02X10678)			Immediately	$ 3.57
206	WR02X10671		Grille Air Return		Appelez-nous	-
207	WR17X10909		Cover Inlet Discharge		Appelez-nous	-
211	WR01X10568		Scr8-18 Ab Ufl 1 1/2 Ss		Appelez-nous	-
234	WR01L04066		Grille Sensor   (Replaces: WR02X10647)				$ 3.57
235	WR01L04393		Shunt Sensor   (Replaces: WR02X10668)			Immediately	$ 14.29
236	WR01F01730		Sensor Temp Ff   (Replaces: WR55X10025)			Immediately	$ 14.66
237	WR01F01730		Sensor Temp Ff   (Replaces: WR55X10025)			Immediately	$ 14.66
256	WR17X11942		Shield Light Ff		Appelez-nous	-
263	WR01A00453		Pin Hinge Btm Adj Hollow   (Replaces: WR02X12263)				$ 17.01
404	WR01F00643		Diverter Ff Airflow   (Replaces: WR17X11609)				$ 11.44
437	WR17X30670		Insert Plenum		Appelez-nous	-
440	WR17X28655		Housing Lamp Asm		Appelez-nous	-
449	WR13X24863		Hinge Top & Pin Asm		Appelez-nous	-
451	WR13X10159		Hinge Btm Black		Appelez-nous	-
453	WR23X26727		Harness Ff Lt		Appelez-nous	-
454	WR01X10212		Nut 8-32		Appelez-nous	-
458	WR17X12881		Cover Ff Inlet		Appelez-nous	-
460	WR01L00727		Cover Asm Ff Inlet   (Replaces: WR49X10251)				$ 62.95
552	WR01X10792		Scr 12-24 Tt Hx 7/8 S		Appelez-nous	-
553	WR01A00664		Scr 12-24 Tt Ovt 1.000 S   (Replaces: WR01X10918)				$ 4.20
609	WR23X23343		Switch Light		Appelez-nous	-
727	WR17X12295		Separator Air Hiside		Appelez-nous	-
758	WD2X323		Screw 8-32 X 3/8 Sph		Appelez-nous	-
790	WR01F04788		Xwfe Retail Filter   (Replaces: XWFE)			Immediately	$ 91.70
791	WR01A02371		Bypass Filter Plug   (Replaces: WR17X33825)			Immediately	$ 77.69
792	WR17X30702		Xwf Manifold & Tubing		Appelez-nous	-
810	WR01F01814		Water Tank Disp Asm   (Replaces: WR17X11440)			Immediately	$ 23.52
811	WR02X11288		Insul Tube Foam		Appelez-nous	-
812	WG03F00482		Tube Plastic   (Replaces: WR17X2891)			Immediately	$ 35.73
813	WR01F01096		Insulation Tank Foam   (Replaces: WR17X11620)				$ 13.94
842	WR11X10009		Lever Assy Ff Side Black		Appelez-nous	-
847	WG03F00903		Spring Closure   (Replaces: WR1X2027)				$ 68.16
855	WR02X13091		Duct Asm Ff Transition		Appelez-nous	-
984	WR55X35485		Pcb Nextgen Rfid		Appelez-nous	-
985	WR02X35926		Rfid Cover & Fcc Label		Appelez-nous	-
