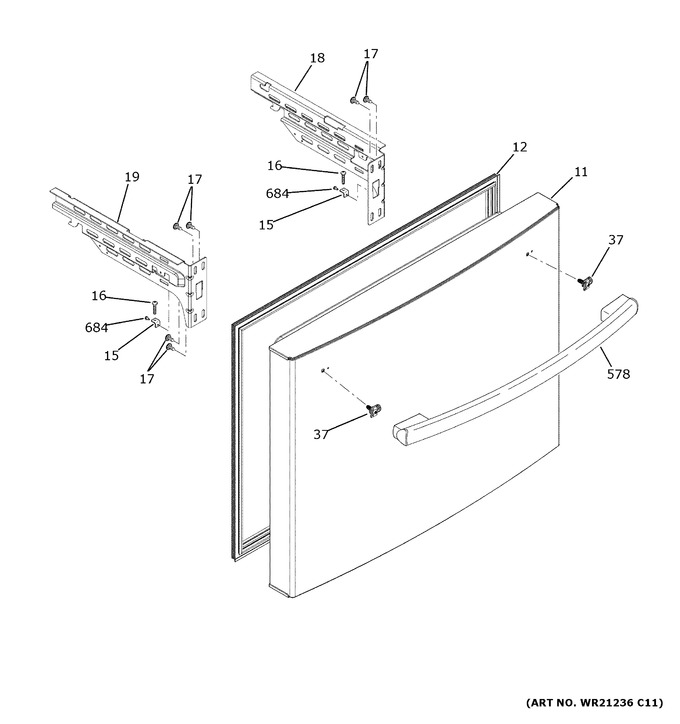

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR78X25540		Door Foam Fz Asm Es		Appelez-nous	-
12	WR14X40076		Freezer Drawer Gasket - Grey		Appelez-nous	-
15	WR02X12870		Bracket Support		Appelez-nous	-
16	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
17	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
18	WR72X30559		Bracket Drawer		Appelez-nous	-
19	WR72X30560		Bracket Drawer		Appelez-nous	-
37	WR01X39781		Fastener			Immediately	$ 27.25
578	WR12X37485		Stainless Freezer Handle		Appelez-nous	-
684	WR01X10844		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
