Diagram # Part Number Description Series Availability Ships Price Add to Cart
193 WR01F01884 Tube Drain   (Replaces: WR02X11426) In-Stock Immediately $ 36.53

215 WR02X10663 Stand Off Appelez-nous -
315 WR02X24943 Mobility Back Asm Appelez-nous -
517 WR29X24766 Grommet And Tube Im Asm Appelez-nous -
616 WR82X22566 Cover Access Asm Appelez-nous -
626 WR23X30131 Power Cord Appelez-nous -
725 WR87X41285 Compressor Appelez-nous -
729 WR55X23731 Capacitor 12 Uf Appelez-nous -
730 WR87X41926 Condenser 8 Pass Appelez-nous -
734 WR02X26153 Clip Retainer Mei Appelez-nous -
735 WG03F01425 Combo Device Tsd-2   (Replaces: WR08X10111) In-Stock Immediately $ 55.98

736 WR2X8203 Clip Appelez-nous -
737 WR02X40305 Grommet Appelez-nous -
740 WR87X30875 R600 Drier W/ Red Cap Appelez-nous -
741 WR1X1779 Stud Mtg Compr Appelez-nous -
750 WR1X1786 Scr 10-32 Tr 1/2 Appelez-nous -
775 WR17X37725 Cover Water Line Appelez-nous -
800 WR57X26305 Valve & Guard Asm Appelez-nous -
801 WR55X40526 Main Control Board Appelez-nous -
802 WR23X10505 Harness Board Indiv Appelez-nous -
803 WR02X40325 Main Control Board Cover Appelez-nous -
917 WR02X13573 Sound Damper Appelez-nous -
942 WR01X10654 Scr 10-32 Tt Hxw 5/16 S Appelez-nous -
943 WR01X25308 Scr 10-16 B Hxw 1/4 S Appelez-nous -
944 WR01X10652 Scr 8-18 Ab Ihw 5/8 S Appelez-nous -
980 WR60X29573 Condenser Fan & Housing Appelez-nous -
982 WR02X13774 Tube Lead Appelez-nous -
983 WG03F00071 Bracket Cond Fan (mtg)   (Replaces: WR02X11863) In-Stock Immediately $ 27.00

984 WG03F00306 Grommet Evap Fan   (Replaces: WR02X12008) In-Stock Immediately $ 6.99

985 WR02X10593 Bracket Cond Fan (rear) Appelez-nous -
986 WG03F01616 Ring Compression   (Replaces: WR02X12149) Special Order $ 3.97

987 WR60X24484 Blade Conf Fan Asm Appelez-nous -
988 WG03F00433 Motor Dc Cond Fan   (Replaces: WR60X10209) In-Stock Immediately $ 106.28

989 WR17X31695 Shroud Condenser Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

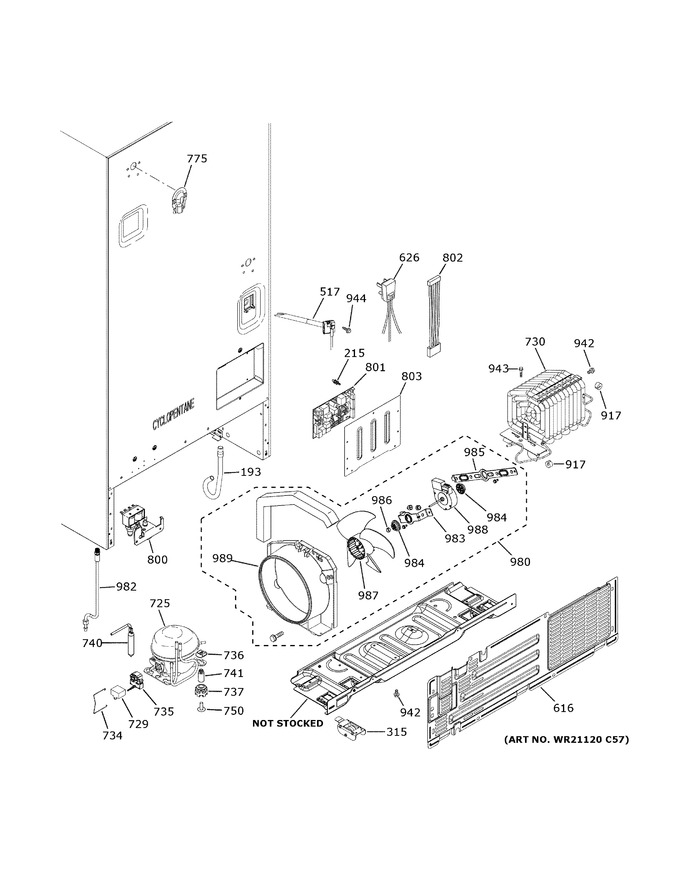

Diagram for GNE21FYKFFFS
