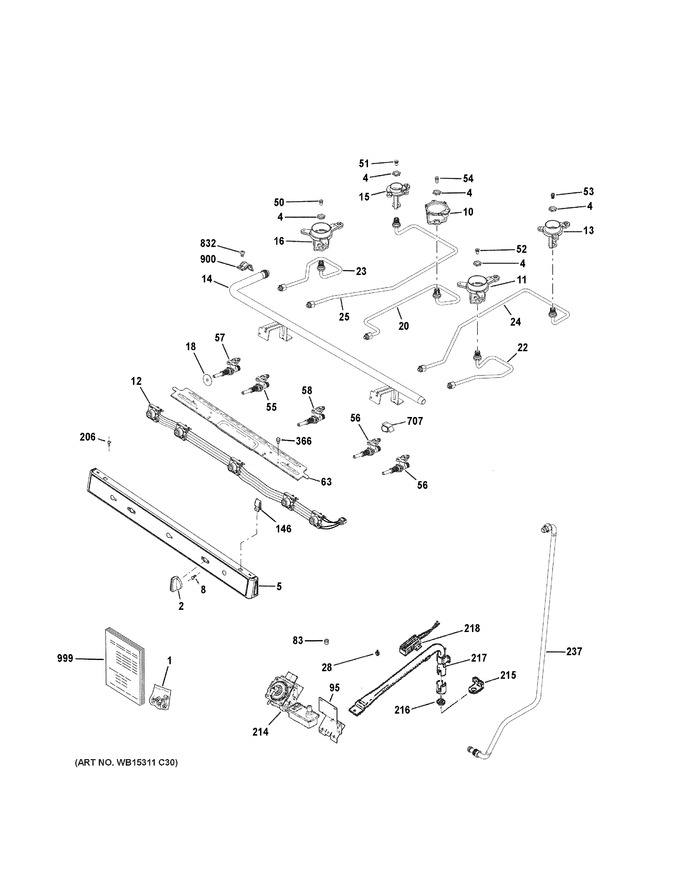

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB28X39136 | Lp Conversion Kit |
|
- | |||||
| 2 | WS01L13900 | Knob Asm (Replaces: WB03X24818) |
|
Immediately | $ 23.53 | ||||
| 4 | WS01A01130 | Economic Nut (Replaces: WB01K10037) |
|
Immediately | $ 16.28 | ||||
| 5 | WB36X24894 | Panel And Cover Asm |
|
- | |||||
| 8 | WS01A01212 | Screw 8-32 (Replaces: WB01K10002) |
|
$ 88.13 | |||||
| 10 | WS01A00976 | Ckt Bracket Small (Replaces: WB02K10360) |
|
$ 11.42 | |||||
| 11 | WB02X24727 | Injet, Medium V2 |
|
- | |||||
| 12 | WB18X31213 | Harness Switches |
|
- | |||||
| 13 | WB02X24726 | Injet, Large V2 |
|
- | |||||
| 14 | WB28X24765 | Manifold Pipe |
|
- | |||||
| 15 | WB02X24728 | Injet, Small V2 |
|
- | |||||
| 16 | WB02X24725 | Injet, Xl V2 |
|
- | |||||
| 18 | WB2K24 | Cover Valve |
|
- | |||||
| 20 | WB28X24762 | Orifice Holder Central |
|
- | |||||
| 22 | WB28X24766 | Orifice Holder Rf |
|
- | |||||
| 23 | WB28X26621 | Orifice Holder Lf |
|
- | |||||
| 24 | WB28X24764 | Orifice Holder |
|
- | |||||
| 25 | WB28X24763 | Orifice Holder |
|
- | |||||
| 28 | WB1K50 | Screw Mtg Igniter |
|
- | |||||
| 50 | WB28X26625 | Orifice Spud |
|
- | |||||
| 51 | WS01F01338 | Orifice Spud Lp (Replaces: WB28K10834) |
|
Immediately | $ 3.97 | ||||
| 52 | WS01F01389 | Orifice-lp 89mm (Replaces: WB28K10023) |
|
$ 3.97 | |||||
| 53 | WS01F01390 | Orifice-lp Lg 99mm (Replaces: WB28K10032) |
|
$ 12.71 | |||||
| 54 | WS01F01422 | Orifice Spud Lp 86l (Replaces: WB28K10215) |
|
$ 12.71 | |||||
| 55 | WS01F05939 | Valve Burner 270 (Replaces: WB21X20261) |
|
$ 57.25 | |||||
| 56 | WS01F05938 | Valve Burner 270 (Replaces: WB21X20260) |
|
Immediately | $ 22.53 | ||||
| 57 | WB21X20262 | Valve Burner 270 |
|
- | |||||
| 58 | WB21X20394 | Valve Burner 270 |
|
- | |||||
| 63 | WB02K10272 | Manifold Support |
|
- | |||||
| 83 | WB28X21079 | Oven Orifice Spud Lp |
|
- | |||||
| 95 | WB02X22890 | Bracket Regulator |
|
- | |||||
| 146 | WB02X26569 | Clip Rangetop |
|
- | |||||
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 12.71 | ||||
| 214 | WB21X38549 | Valve Control Asm |
|
- | |||||
| 215 | WB2K65 | Bracket Safety Valve |
|
- | |||||
| 216 | WB1K6 | Nut Lock |
|
- | |||||
| 217 | WB16X20253 | Burner Oven Assy |
|
- | |||||
| 218 | SGR403 | Igniter-oven Bake (Replaces: WB13K21) |
|
Immediately | $ 77.34 | ||||
| 237 | WB28X24772 | Tube Manifold Supply |
|
- | |||||
| 366 | WB01X23700 | Scr 10-16 Pl Pnt 2.5 S |
|
- | |||||
| 707 | WB02K10267 | Clip Wire |
|
- | |||||
| 832 | WB01K10080 | Screw Thermostat |
|
- | |||||
| 900 | WB02K10297 | Bracket Valve |
|
- | |||||
| 999 | 49-2001040 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-11028 | Pm Install Instructions |
|
- | |||||
| 999 | 49-2000316 | Pm Owners Manual |
|
- | |||||
| 999 | 31-17233 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 999 | 31-10998 | Pm Install Instructions |
|
- | |||||
| 999 | WB49X21392 | Hinge Service Kit |
|
- |
