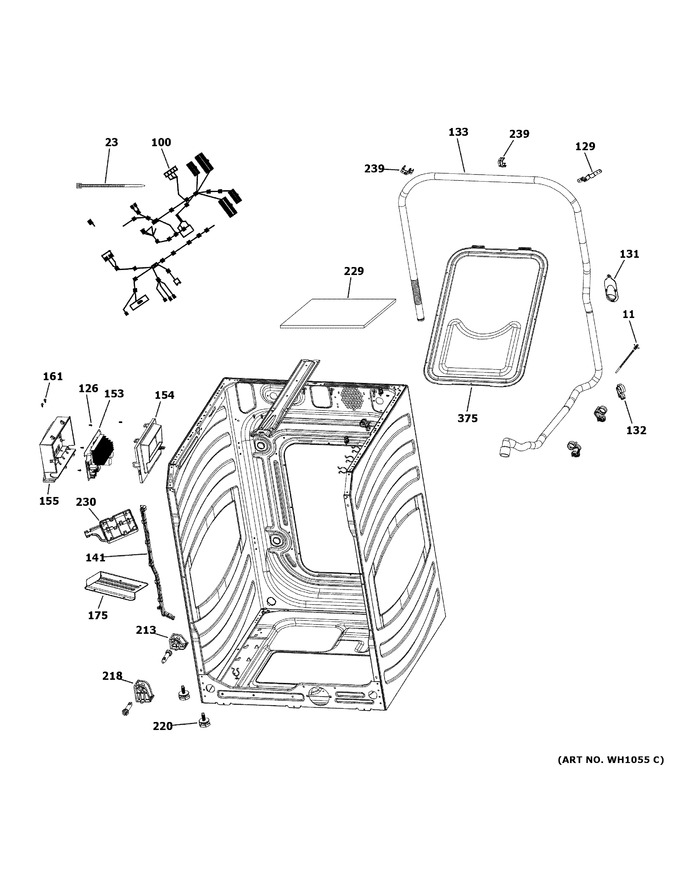

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WH01X26257		Large Wire Tie		Appelez-nous	-
23	WH01X26259		Wire Tie		Appelez-nous	-
100	WH08X29510		Main Harness 650		Appelez-nous	-
126	WH02X27219		M Screw		Appelez-nous	-
129	WH01X29613		External Drain Hose Support		Appelez-nous	-
131	WH02X29619		External Drain Hose Guide		Appelez-nous	-
132	WH02X29616		External Drain Hose Internal Support		Appelez-nous	-
133	WH41X29503		External Drain Hose		Appelez-nous	-
135	WH02X33454		Drain Hose Support		Appelez-nous	-
141	WH01X29651		Harness Support Left		Appelez-nous	-
153	WH22X32957		Inverter Board		Appelez-nous	-
154	WH01X29666		Inverter Box Cover		Appelez-nous	-
155	WH01X29624		Inverter Cover		Appelez-nous	-
161	WR01X28375		Screw M5 X 16		Appelez-nous	-
175	WH01X30353		Inverter Heat Shield		Appelez-nous	-
213	WH41X29621		Dispenser Fill Hose Nozzle		Appelez-nous	-
215	WH13X29675		Rear Damper Bracket		Appelez-nous	-
218	WH13X29653		Front Damper Bracket		Appelez-nous	-
220	WH01X29505		Leveling Leg		Appelez-nous	-
229	WH01X30350		Heat Shield		Appelez-nous	-
230	WH01X30356		Terminal Bracket		Appelez-nous	-
239	WH02X29635		External Drain Hose Support		Appelez-nous	-
375	WH10X29625		Rear Cover		Appelez-nous	-
