SELECT A DIAGRAM

Cabinet


Controls & Backsplash

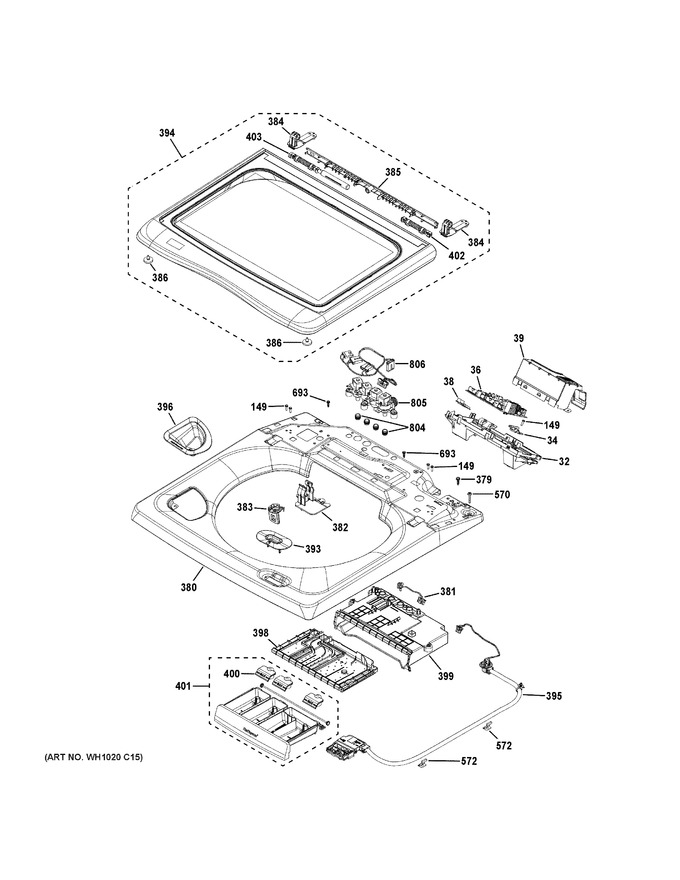

Top Panel & Lid


Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	WH01X32865		Main Control Board Housing		Appelez-nous	-
34	WH01X32882		Pcb Bracket		Appelez-nous	-
36	WH22X34397		Main Control Board W/instructions		Appelez-nous	-
38	WH22X32868		Wifi Board		Appelez-nous	-
39	WH01X33959		Main Control Shield		Appelez-nous	-
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
379	WE02X10107		Scr 10-32 Gx Hxw 7/16 S		Appelez-nous	-
380	WH10X33077		Top Cover Diamond Gray		Appelez-nous	-
381	WH04X29448		Thermistor		Appelez-nous	-
382	WH01X33998		Capacitor Bracket & Pump Hole Plug		Appelez-nous	-
383	WH01X32866		Lid Lock Striker		Appelez-nous	-
384	WH01X32861		Lid Stanchion		Appelez-nous	-
385	WH01X32862		Hinge Reinforcement Cover		Appelez-nous	-
385	WH01X35557		Profile Tl Washer Lid Hinge Kit		Appelez-nous	-
386	WH01X32870		Lid Bumper		Appelez-nous	-
393	WH01X33877		Lid Lock Bezel		Appelez-nous	-
394	WH44X33060		Glass Frame Lid Diamond Gray		Appelez-nous	-
395	WH08X33879		Lid Lock Quick Release		Appelez-nous	-
396	WH01X32879		Bleach Cup		Appelez-nous	-
398	WH42X34998		Dispenser Box & Drawer Le Profile Tl Was		Appelez-nous	-
398	WH42X32864		Dispenser Shower Plate		Appelez-nous	-
399	WH42X32863		Box Dispenser		Appelez-nous	-
399	WH42X34778		Disp Box, Shower Plate, Gear, & Seal Asm		Appelez-nous	-
400	WH01X32893		Siphon Cap		Appelez-nous	-
401	WH42X34718		Dispenser Drawer Assembly Diamond Gray		Appelez-nous	-
401	WH42X34194		Dispenser Drawer Assembly Diamond Gray		Appelez-nous	-
402	WH01X34193		Lid Hinge Rh		Appelez-nous	-
403	WH01X34192		Lid Hinge W/damper Lh		Appelez-nous	-
570	WH02X24116		Scr 10-32 Gx 1.309 Hwx S		Appelez-nous	-
572	WH02X24143		Lid Lock Harness Clip		Appelez-nous	-
693	WH02X24057		Scr 8-16 Plastite Hxw 5/8		Appelez-nous	-
693	WD01X27719		Screw 8-18 Pl Hxw 1/2		Appelez-nous	-
804	WH13X24094		Water Valve Seal		Appelez-nous	-
805	WH13X26637		Valve Quad Water Asm				$ 155.15
806	WH08X32886		Water Valve Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
