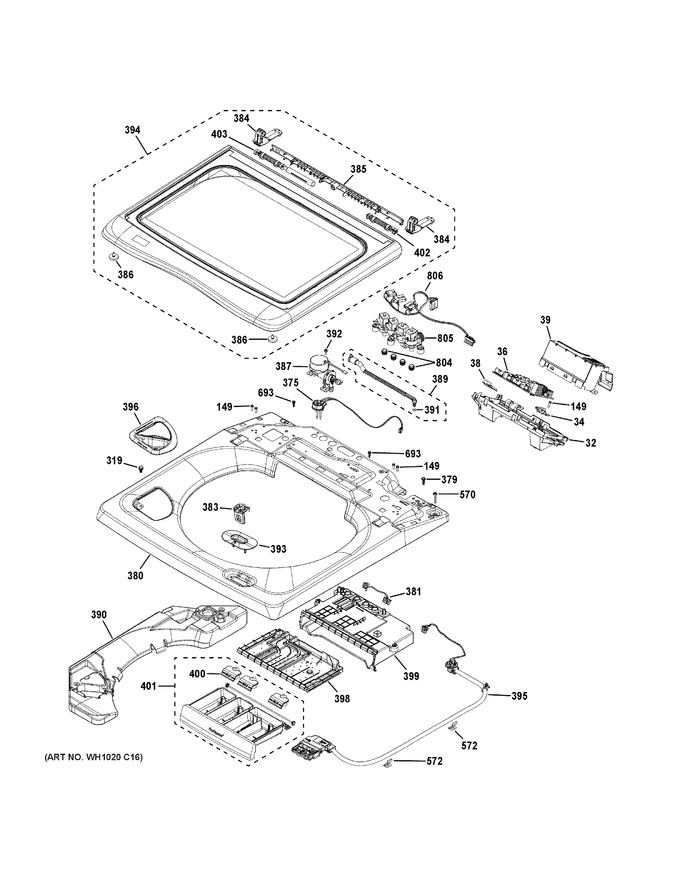

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WH01X32865 | Main Control Board Housing |
|
- | |||||
| 34 | WH01X32882 | Pcb Bracket |
|
- | |||||
| 36 | WH22X34397 | Main Control Board W/instructions |
|
- | |||||
| 38 | WH22X32868 | Wifi Board |
|
- | |||||
| 39 | WH01X33959 | Main Control Shield |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 319 | WH02X24154 | Scr 1/4-20 Tt Hxt .485 S |
|
- | |||||
| 375 | WH04X34183 | Bulk Tank Level Sensor |
|
- | |||||
| 379 | WE02X10107 | Scr 10-32 Gx Hxw 7/16 S |
|
- | |||||
| 380 | WH10X33077 | Top Cover Diamond Gray |
|
- | |||||
| 381 | WH04X29448 | Thermistor |
|
- | |||||
| 383 | WH01X32866 | Lid Lock Striker |
|
- | |||||
| 384 | WH01X32861 | Lid Stanchion |
|
- | |||||
| 385 | WH01X32862 | Hinge Reinforcement Cover |
|
- | |||||
| 385 | WH01X35557 | Profile Tl Washer Lid Hinge Kit |
|
- | |||||
| 386 | WH01X32870 | Lid Bumper |
|
- | |||||
| 387 | WH42X34184 | Detergent Pump |
|
- | |||||
| 389 | WH01X34186 | Detergent Pump Tube |
|
- | |||||
| 390 | WH42X34187 | Bulk Tank |
|
- | |||||
| 391 | WH02X34188 | Conduit O-ring |
|
- | |||||
| 392 | WW01A00097 | Scr 8-18 Ab Ihw 7/16 Sn (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 393 | WH01X33877 | Lid Lock Bezel |
|
- | |||||
| 394 | WH44X33060 | Glass Frame Lid Diamond Gray |
|
- | |||||
| 395 | WH08X33879 | Lid Lock Quick Release |
|
- | |||||
| 396 | WH01X34189 | Detergent Funnel |
|
- | |||||
| 398 | WH42X35000 | Dispenser Box & Drawer He Profile Tl Was |
|
- | |||||
| 398 | WH42X32864 | Dispenser Shower Plate |
|
- | |||||
| 399 | WH42X34190 | Dispenser Box |
|
- | |||||
| 399 | WH42X34777 | Disp Box, Shower Plate, Gear, & Seal Asm |
|
- | |||||
| 400 | WH01X32893 | Siphon Cap |
|
- | |||||
| 401 | WH42X34194 | Dispenser Drawer Assembly Diamond Gray |
|
- | |||||
| 401 | WH42X34718 | Dispenser Drawer Assembly Diamond Gray |
|
- | |||||
| 402 | WH01X34193 | Lid Hinge Rh |
|
- | |||||
| 403 | WH01X34192 | Lid Hinge W/damper Lh |
|
- | |||||
| 570 | WH02X24116 | Scr 10-32 Gx 1.309 Hwx S |
|
- | |||||
| 572 | WH02X24143 | Lid Lock Harness Clip |
|
- | |||||
| 693 | WD01X27719 | Screw 8-18 Pl Hxw 1/2 |
|
- | |||||
| 693 | WH02X24057 | Scr 8-16 Plastite Hxw 5/8 |
|
- | |||||
| 804 | WH13X24094 | Water Valve Seal |
|
- | |||||
| 805 | WH13X26637 | Valve Quad Water Asm |
|
$ 155.15 | |||||
| 806 | WH08X34185 | Water Valve & Detergent Pump Harness |
|
- |
