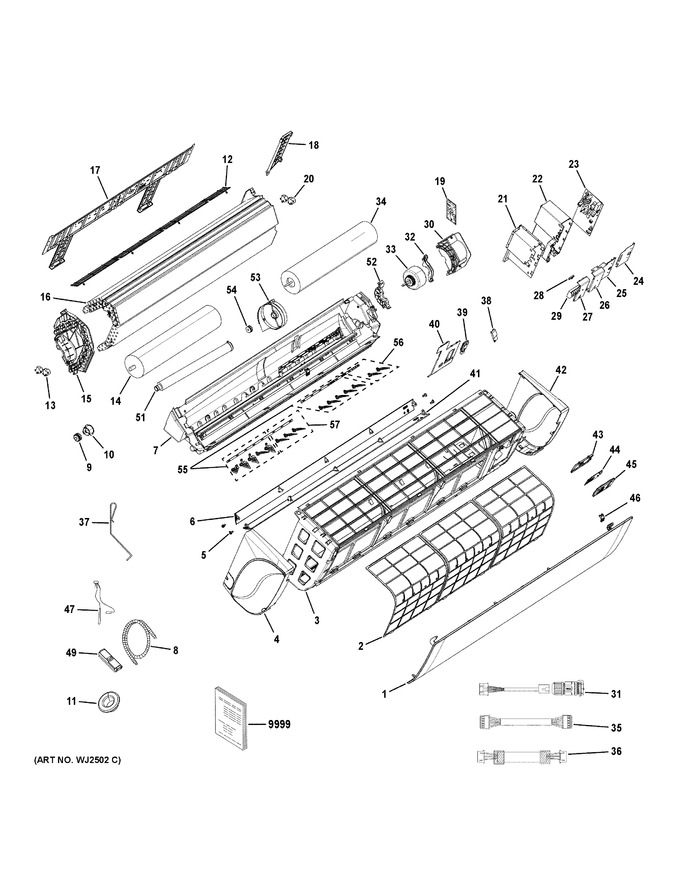

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X29523 | Top Panel |
|
- | |||||
| 2 | WJ85X22778 | Air Filter |
|
- | |||||
| 3 | WJ76X29517 | Casing |
|
- | |||||
| 4 | WJ71X30533 | Left End Cap |
|
- | |||||
| 5 | WJ01X24235 | Shaft Jacket |
|
- | |||||
| 6 | WJ71X24239 | Bottom Horizontal Louver |
|
- | |||||
| 7 | WJ71X30722 | Frame Assy |
|
- | |||||
| 8 | WJ53X23032 | Drain Hose |
|
$ 6.41 | |||||
| 9 | WJ73X22749 | Cross Flow Fan Bearing |
|
$ 8.88 | |||||
| 10 | WJ73X23050 | Cross Flow Fan Bearing Cover |
|
- | |||||
| 11 | WJ53X28913 | Guard Ring |
|
- | |||||
| 12 | WJ71X29515 | Fan Guard |
|
- | |||||
| 13 | WJ94X22786 | Lh Horizontal Louver Motor |
|
- | |||||
| 14 | WJ73X22781 | Cross Flow Fan Right |
|
- | |||||
| 15 | WJ65X31114 | Evap. Support |
|
- | |||||
| 16 | WJ87X29754 | Evaporator |
|
- | |||||
| 17 | WJ65X30833 | Mounting Bracket |
|
- | |||||
| 18 | WJ65X31113 | Line Set Plate |
|
- | |||||
| 19 | WJ26X26464 | Wired Controle Adaptor Board |
|
- | |||||
| 20 | WJ94X29526 | Stepper Motor2 |
|
- | |||||
| 21 | WJ76X29662 | Board Protector |
|
- | |||||
| 22 | WJ76X29661 | Electrical Box |
|
- | |||||
| 23 | WJ26X30837 | Indoor Pcb |
|
- | |||||
| 24 | WJ76X29660 | Electrical Box Cover |
|
- | |||||
| 25 | WJ76X24394 | Electrical Box Cover (plastic) |
|
- | |||||
| 26 | WJ76X29514 | Protect Board Of Cover Board 2 |
|
- | |||||
| 27 | WJ76X29516 | Cover Board Of Eletric Box2 |
|
- | |||||
| 28 | WJ76X23057 | Power Cable Cover |
|
- | |||||
| 29 | WJ35X29528 | Terminal Block |
|
- | |||||
| 30 | WJ76X29520 | Motor Cover |
|
- | |||||
| 31 | WJ27X27115 | Rj45 |
|
- | |||||
| 32 | WJ65X26398 | Motor Bracket Top |
|
- | |||||
| 33 | WJ94X22784 | Indoor Motor |
|
- | |||||
| 34 | WJ73X22780 | Cross Flow Fan Left |
|
- | |||||
| 35 | WJ35X27134 | Wifi Wiring Harness |
|
- | |||||
| 36 | WJ35X27136 | Wk-b Wiring Harness |
|
- | |||||
| 37 | WJ26X29675 | Sensor Clip |
|
- | |||||
| 38 | WJ76X26434 | Wifi Module Cover |
|
- | |||||
| 39 | WJ26X27137 | Wifi-module |
|
- | |||||
| 40 | WJ71X29524 | Access Panel |
|
- | |||||
| 41 | WJ94X24391 | Top Horizontal Louver |
|
- | |||||
| 42 | WJ71X30534 | Right End Cap |
|
- | |||||
| 43 | WJ76X26408 | Display Board Box |
|
- | |||||
| 44 | WJ26X26460 | Display Panel |
|
- | |||||
| 45 | WJ76X26409 | Display Board Cover |
|
- | |||||
| 46 | WJ76X29521 | Screw Cover |
|
- | |||||
| 47 | WJ26X23593 | Temperature Sensor |
|
- | |||||
| 49 | WJ26X29525 | Remote |
|
- | |||||
| 50 | WJ35X33413 | Wire Harness Pcb Display |
|
- | |||||
| 51 | WJ53X29673 | Drain Hose |
|
- | |||||
| 52 | WJ65X26399 | Motor Bracket Bottom |
|
- | |||||
| 53 | WJ65X29522 | Fan Bracket |
|
- | |||||
| 54 | WJ73X30835 | Bearing 1 |
|
- | |||||
| 55 | WJ71X30535 | Connecting Rod |
|
- | |||||
| 56 | WJ71X29734 | Vertical Louver 2 |
|
- | |||||
| 57 | WJ71X30834 | Vertical Louver 3 |
|
- | |||||
| 9999 | 31-5000532 | Pm Installation Instruction |
|
- | |||||
| 9999 | 49-5000094 | Pm Owners Manual |
|
- |
