Room Air Conditioner
New Model Search:

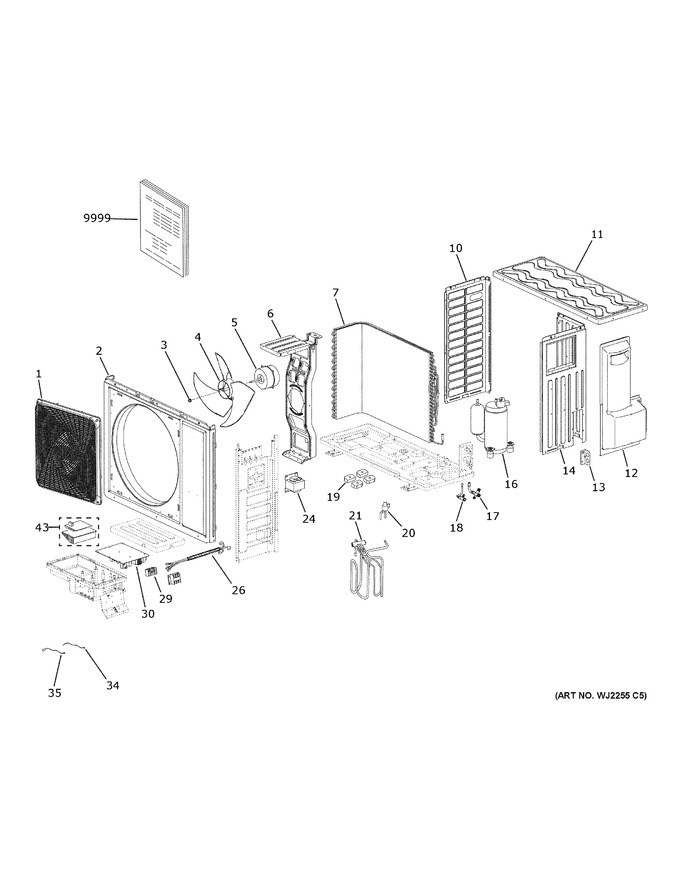

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23214 | Grille |
|
- | |||||
| 2 | WJ71X29555 | Front Panel |
|
- | |||||
| 3 | WJ01X22974 | Flange Nut |
|
- | |||||
| 4 | WJ73X29053 | Fan Blade |
|
- | |||||
| 5 | WJ94X29054 | Outdoor Fan Motor |
|
- | |||||
| 6 | WJ65X29556 | Outdoor Fan Motor Bracket |
|
- | |||||
| 6 | WJ65X23001 | Outdoor Fan Motor Bracket |
|
- | |||||
| 7 | WJ88X22994 | Outdoor Coil |
|
$ 400.98 | |||||
| 10 | WJ76X23137 | Left Side Panel |
|
- | |||||
| 11 | WJ76X23012 | Top Cover |
|
- | |||||
| 12 | WJ76X23007 | Valve Cover |
|
- | |||||
| 13 | WJ65X27113 | Strain Relief Bracket |
|
- | |||||
| 14 | WJ76X23138 | Right Side Panel |
|
- | |||||
| 16 | WJ98X29565 | Compressor |
|
- | |||||
| 17 | WJ53X24975 | Vapor Service Valve |
|
- | |||||
| 18 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 19 | WJ01X29554 | Vibration Pads |
|
- | |||||
| 20 | WJ26X29665 | Electronic Expansion Valve |
|
- | |||||
| 21 | WJ53X29736 | 4-way Valve Assembly |
|
- | |||||
| 24 | WJ27X23006 | Reactor |
|
- | |||||
| 26 | WJ35X26440 | Outdoor Wire Harness |
|
- | |||||
| 29 | WJ27X26435 | Terminal Block |
|
- | |||||
| 30 | WJ26X28294 | Power Control Board |
|
- | |||||
| 34 | WJ26X23009 | Suction Sensor |
|
$ 22.15 | |||||
| 35 | WJ26X22984 | Sensor Assembly Amb/dis/coil |
|
$ 19.93 | |||||
| 43 | WJ26X30836 | Inverter Assembly |
|
- | |||||
| 9999 | 31-5000532 | Pm Installation Instruction |
|
- |
