Diagram # Part Number Description Series Availability Ships Price Add to Cart
379 WE02X10107 Scr 10-32 Gx Hxw 7/16 S Appelez-nous -
380 WH44X27354 Top Cover Appelez-nous -
381 WH04X29448 Thermistor Appelez-nous -
382 WH02X24414 Scr 6-32 Flp .490 Ss Appelez-nous -
383 WH01X31637 Lid Lock Striker Appelez-nous -
385 WH01X24108 Lid Front Corner Bumper Appelez-nous -
386 WH02X34897 Lid Bumper Center Appelez-nous -
387 WH01X24111 Lid Lever Arm Appelez-nous -
393 WH01X31638 Lid Lock Bezel Appelez-nous -
394 WH44X26701 Glass Frame Asm Xl Lid Appelez-nous -
395 WH08X32657 Lid Lock & Harness Appelez-nous -
396 WH47X26697 Bleach Cup Appelez-nous -
398 WH47X26754 Plate Shower Dispenser Appelez-nous -
399 WH47X27014 Box Dispenser Appelez-nous -
400 WH42X29424 Siphon Cap Appelez-nous -
401 WH47X26698 Drawer Dispenser Appelez-nous -
402 WH02X24139 Lid Hinge Appelez-nous -
403 WH02X24140 Lid Hinge Screw Appelez-nous -
570 WH02X24116 Scr 10-32 Gx 1.309 Hwx S Appelez-nous -
572 WH02X24143 Lid Lock Harness Clip Appelez-nous -
693 WH02X24057 Scr 8-16 Plastite Hxw 5/8 Appelez-nous -
804 WH13X24094 Water Valve Seal Appelez-nous -
805 WH13X26637 Valve Quad Water Asm Special Order $ 155.15

806 WH08X29860 Water Valve Harness Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

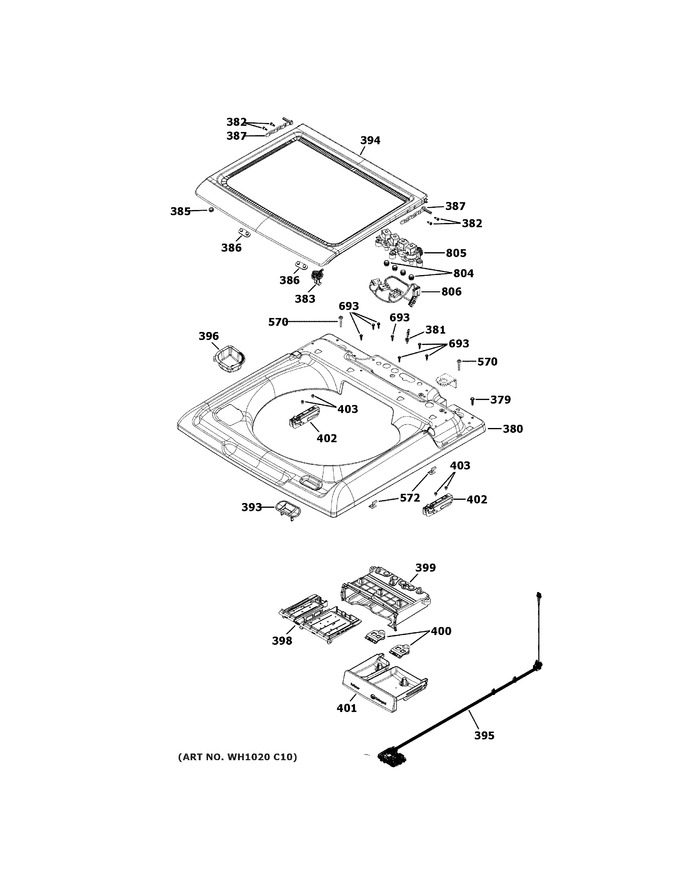

Diagram for GTW685BPL2DG
