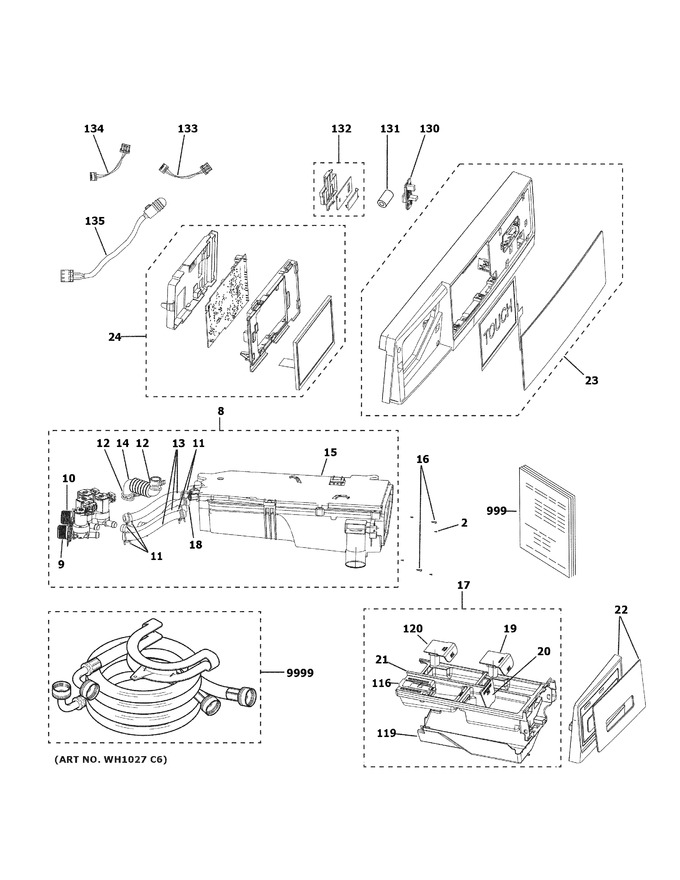

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WH02X26236		Screw M4*10		Appelez-nous	-
8	WH42X36120		Dispenser Housing & Hoses Assembly Qfw15		Appelez-nous	-
8	WH42X29231		Dispenser Housing & Water Valve		Appelez-nous	-
9	WH13X28374		Hot Water Valve				$ 47.10
10	WH13X28339		Cold Water Valve		Appelez-nous	-
11	WH01X26244		Tube Clamp		Appelez-nous	-
12	WH01X26245		Tub Vent Hose Clamp		Appelez-nous	-
13	WH01X28397		Water Inlet Tube 6.5"		Appelez-nous	-
14	WH41X28340		Tub Vent Hose		Appelez-nous	-
15	WH42X29225		Dispenser Housing		Appelez-nous	-
16	WH02X26514		Front Dispenser Housing Screw St4x14		Appelez-nous	-
17	WH47X28341		Dispenser Drawer Asm		Appelez-nous	-
18	WH01X28398		Tube Valve-to-dispenser		Appelez-nous	-
19	WH43X28343		Softener Siphon Cap		Appelez-nous	-
20	WH15X28419		Disp Liquid To Powder Flap		Appelez-nous	-
21	WH47X28342		Dispenser Drawer		Appelez-nous	-
22	WH13X29217		Dispenser Drawer Handle		Appelez-nous	-
23	WH22X29224		Control Panel		Appelez-nous	-
24	WH22X29232		User Interface Board & Display		Appelez-nous	-
116	WH47X28413		Drawer Release Lever		Appelez-nous	-
119	WH47X28399		Disp Drawer Guiding Panel		Appelez-nous	-
120	WH47X28400		Bleach Siphon Cap		Appelez-nous	-
130	WH22X29227		Wifi Board		Appelez-nous	-
131	WH04X29228		Emi Choke		Appelez-nous	-
132	WH01X29219		Power Button		Appelez-nous	-
133	WE08X28760		Rj45 Harness		Appelez-nous	-
134	WH08X29226		Power Button Jumper Harness		Appelez-nous	-
135	WH01X29218		Led Light		Appelez-nous	-
999	49-3000191		Pm Owners And Install		Appelez-nous	-
999	31-3000192		Pm Mini Manual And Wiring		Appelez-nous	-
9999	WH41X28683		Inlet Hoses		Appelez-nous	-
