SELECT A DIAGRAM

Cabinet


Cafe Customization


Doors & Drawers


Lokring Connectors

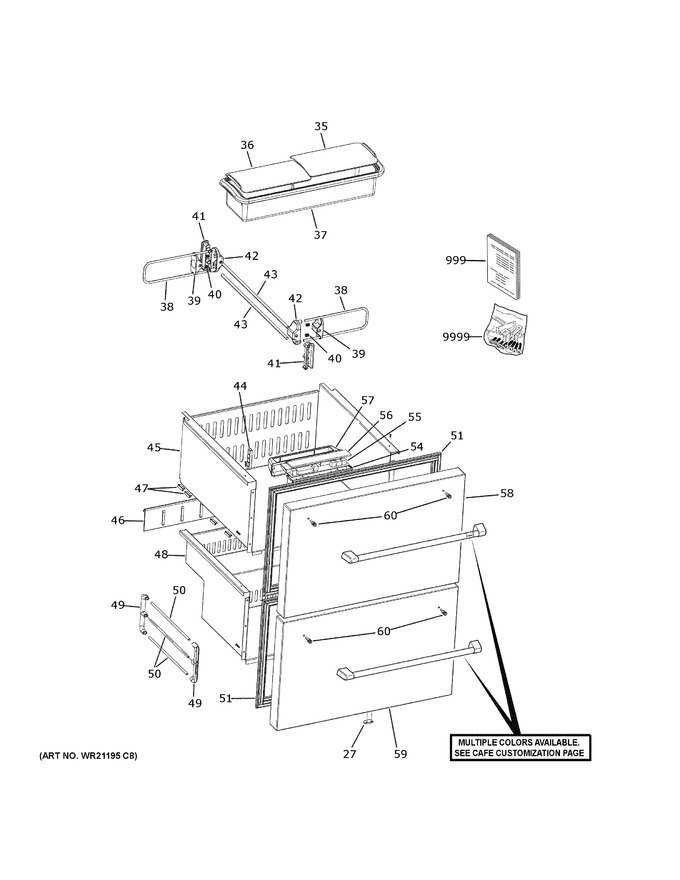

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
27	WR01X30110		Reed Switch & Magnet		Appelez-nous	-
35	WR71X28246		Upper Crisper Cover		Appelez-nous	-
36	WR71X28271		Lower Crisper Cover		Appelez-nous	-
37	WR71X28269		Crisper Pan		Appelez-nous	-
38	WR01X28268		Separated Steel-thread		Appelez-nous	-
39	WR01X28267		Upper Partition Slide Seat		Appelez-nous	-
40	WR01X28255		Upper Partition Spring		Appelez-nous	-
41	WR01X28273		Upper Partition Slide Groove		Appelez-nous	-
42	WR13X28264		Upper Parition Slide Cover		Appelez-nous	-
43	WR01X28265		Steel Roller Wire		Appelez-nous	-
44	WR01X28257		Upper Partition Fixture		Appelez-nous	-
45	WR71X28249		Upper Drawer		Appelez-nous	-
46	WR01X28254		Lower Partition Localizer		Appelez-nous	-
47	WR01X28259		Cable Clamp		Appelez-nous	-
48	WR71X28282		Lower Drawer		Appelez-nous	-
49	WR01X28280		Lower Partition Slide Pillar		Appelez-nous	-
50	WR01X28278		Partition Steel Wire		Appelez-nous	-
51	WR14X28276		Undercounter - Door Gasket Black		Appelez-nous	-
54	WR13X28266		Display Control Cover		Appelez-nous	-
55	WR55X32027		Display Board		Appelez-nous	-
56	WR13X33806		Display Board Cover		Appelez-nous	-
57	WR14X28251		Display Control Box		Appelez-nous	-
58	WR78X34086		Upper Door Black Slate		Appelez-nous	-
59	WR78X31048		Lower Door Black Slate		Appelez-nous	-
60	WR01A01801		Door Handle Fastener   (Replaces: WR01X11007)			Immediately	$ 12.71
999	31-1000153		Pm Mini Manual And Wiring		Appelez-nous	-
999	49-1000129		Pm Owners And Install		Appelez-nous	-
9999	WR49X32008		Anti-tip Bracket And Screw Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
