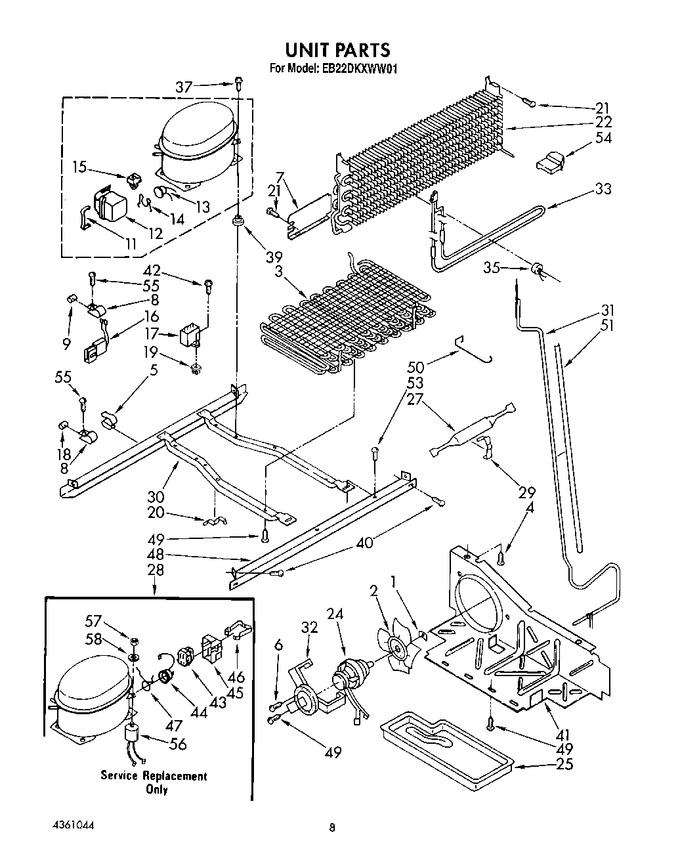

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	1105640		Condenser Assembly		Appelez-nous	-
4	488624		Screw		Appelez-nous	-
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	1115006		Air Baffle, Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	2147065		Overload		Appelez-nous	-
14	943320		Overload Spring		Appelez-nous	-
15	1101014		Relay		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
18	WP2158826		Dampener   (Replaces: 836075)				$ 1.82
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	1114714		Evaporator		Appelez-nous	-
24	833697		Fan Motor   (Replaces: 2149963)			Immediately	$ 88.15
25	1105524		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 57.13
28	482982		Compressor (includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (also Order 876765 Tube Kit)		Appelez-nous	-
29	1127590		Clamp, Dryer		Appelez-nous	-
30	2304903		Unit Mounting Frame   (Replaces: 1127944)				$ 244.68
31	1114723		Exchanger, Heat		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2149065		Heater, Defrost		Appelez-nous	-
35	WP2182381		Bi-metal, Defrost   (Replaces: 1127429)				$ 126.15
37	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1114359)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	1105530		Baffle, Air		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
44	483054		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	1114190		Overload Spring		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105614		Guard, Fan		Appelez-nous	-
51	1114734		Sleeve		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
54	1115128		Support (2)		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
56	482996		Capacitor		Appelez-nous	-
57	489142		Nut		Appelez-nous	-
58	876764		Valve, Access(3/16``)			Immediately	$ 95.92
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 137.25
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
58	489143		Washer		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 134.49
