Body Parts (1)
Body Parts (2)
Escutcheon & Door Assembly

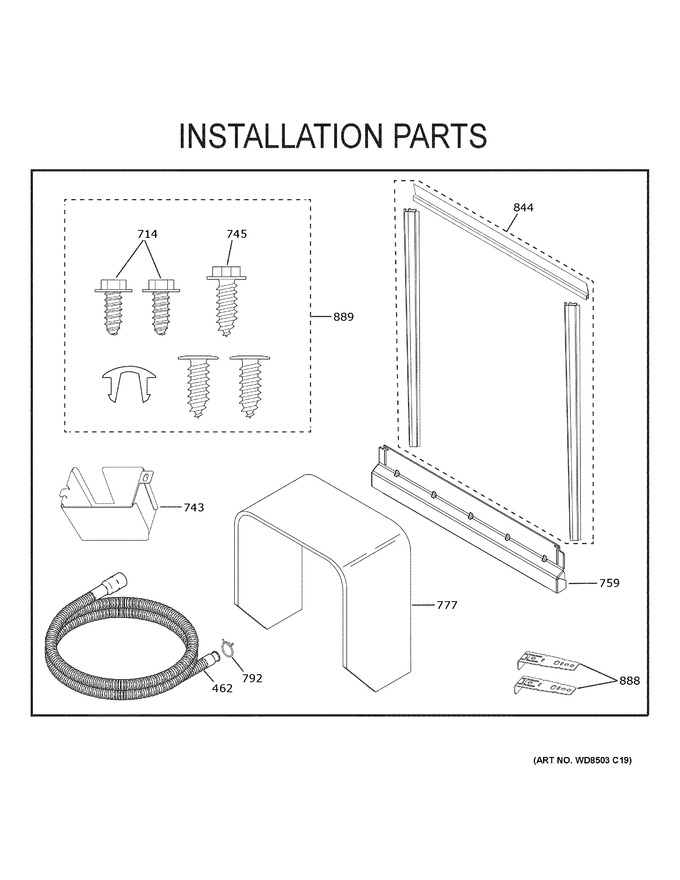

Installation Parts
Lower Rack Assembly
Motor, Sump & Filter Assembly
Upper Rack Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 462 | WG04F04609 | Drain Tube Asm (Replaces: WD24X10062) |
|
Immediately | $ 38.64 | ||||
| 714 | WD02X10083 | Screw 8-18 B Hxw 480 S |
|
- | |||||
| 743 | WG04L01578 | Cover Junction Box (Replaces: WD12X10412) |
|
Immediately | $ 40.01 | ||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 759 | WD27X26218 | Toe Kick Painted Asm |
|
- | |||||
| 777 | WD30X25643 | Tub Insulation |
|
- | |||||
| 792 | WD01X25061 | Spring Clamp |
|
- | |||||
| 844 | WD01X31858 | Tub Trims Kit |
|
- | |||||
| 888 | WD01X21740 | Bracket Countertop |
|
- | |||||
| 889 | WD02X32138 | Countertop Screws And Plug Buttons |
|
- |
