Cabinet

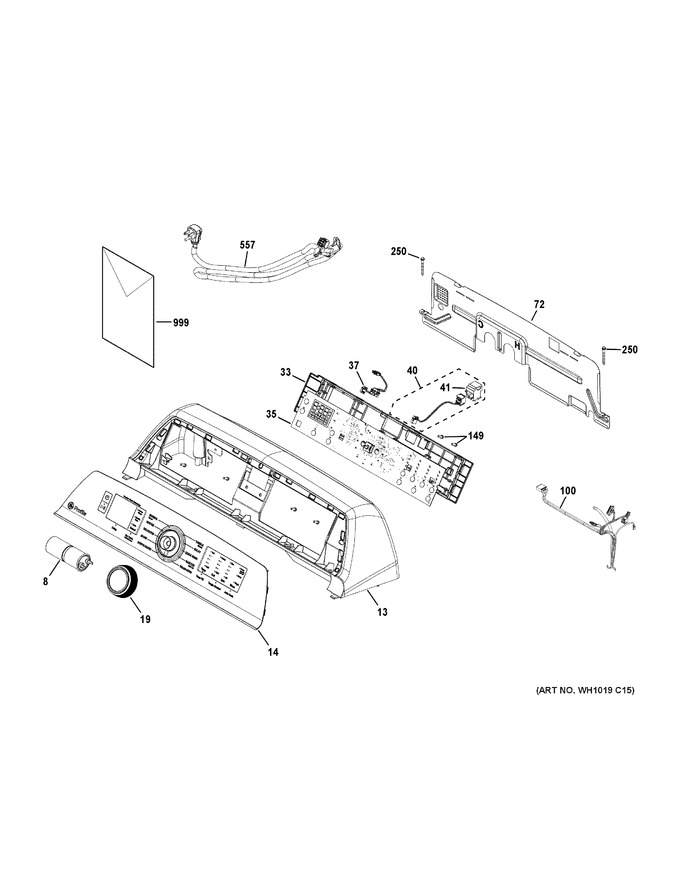

Controls & Backsplash
Top Panel & Lid
Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WH12X29017 | Capacitor |
|
- | |||||
| 13 | WH10X33078 | Control Panel Housing Diamond Gray |
|
- | |||||
| 14 | WH10X32875 | Control Fascia W/knob Collar |
|
- | |||||
| 19 | WH01X32887 | Selector Knob |
|
- | |||||
| 19 | WH01X35377 | Selector Knob |
|
- | |||||
| 33 | WH10X33880 | Control Panel Back Plate & Gasket |
|
- | |||||
| 35 | WH22X32885 | User Interface Board |
|
- | |||||
| 37 | WH08X32889 | User Interface To Wifi Harness |
|
- | |||||
| 40 | WH08X32890 | Rj45 Harness Pigtail |
|
- | |||||
| 41 | WH18X28135 | Housing Rj45 |
|
- | |||||
| 72 | WH10X33318 | Control Housing Rear Panel |
|
- | |||||
| 100 | WH08X33737 | Main Harness |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 250 | WR01X10634 | Scr 8-18 Ab 13/4 S Hxw |
|
- | |||||
| 557 | WH19X24142 | Power Cord |
|
- | |||||
| 999 | 49-3000295 | Pm Owners And Install |
|
- | |||||
| 999 | 49-3000189 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-3000321 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 49-3000187 | Pm Owners And Install |
|
- |
