SELECT A DIAGRAM

Cabinet (1)


Cabinet (2)


Door


Machine Compartment


Shelves & Dawers

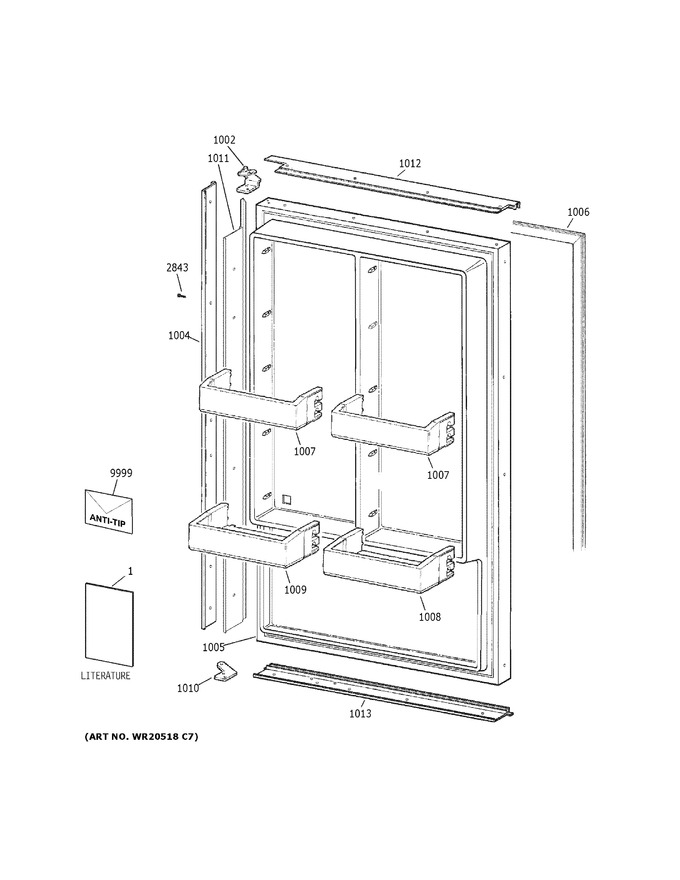

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-49140		Pm Install Instructions		Appelez-nous	-
1	31-51977		Pm Mini Manual		Appelez-nous	-
1002	WR13X25051		Hinge Asm Door Top Lh		Appelez-nous	-
1004	WR12X10952		Handle Trim Asm Rh		Appelez-nous	-
1005	WR78X39592		Freezer Single Door Left Swing		Appelez-nous	-
1006	WR78X20986		Door Gasket Sd		Appelez-nous	-
1007	WG02L00043		Bin Ff Door W/window   (Replaces: WR71X10138)				$ 105.03
1008	WR01L08881		Bin Door Ff Deep Rh   (Replaces: WR71X10139)				$ 94.48
1009	WG03L00003		Bin Door Ff Deep Lh   (Replaces: WR71X10140)				$ 107.67
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
1011	WR38X10440		Trim Handle		Appelez-nous	-
1012	WR17X12706		Trim Top Lh		Appelez-nous	-
1013	WR17X12707		Trim Bottom Lh		Appelez-nous	-
2843	WR01X10065		Screw 8-18 Ba Por 5/8 Ss		Appelez-nous	-
9999	WR49X21844		Anti-tip Hardware Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
