SELECT A DIAGRAM

02 - Cabinet


03 - Liner

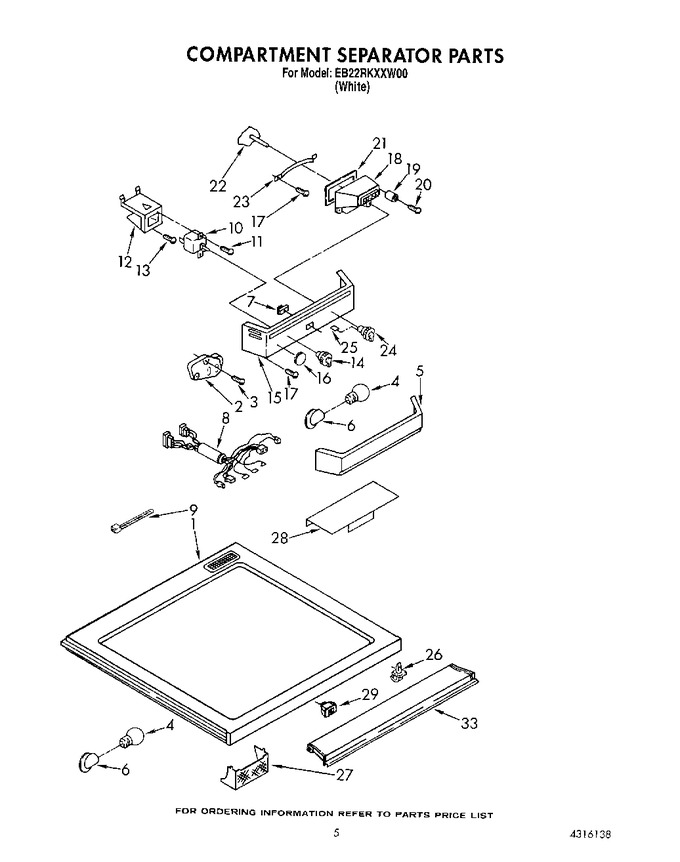

04 - Compartment Separator


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1126098		Compartment Separator Assembly (includes Center Rail And Heater Assembly)		Appelez-nous	-
2	W10822278		Defrost Timer   (Replaces: 2149098)			Immediately	$ 34.44
3	WP488163		Screw, 8 X 1-3/8 (2)   (Replaces: 487534)				$ 7.92
4	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
5	983910		Light Lens		Appelez-nous	-
6	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 115.67
7	938049		Switch, Toggle		Appelez-nous	-
8	2147064		Wiring Assembly, Control Box		Appelez-nous	-
9	1102000		Cable Tie		Appelez-nous	-
10	WP819470		Thermostat Barrier Assembly   (Replaces: 1115076)				$ 164.96
11	WP965173		Screw, 8-15 X 3/8 (2)   (Replaces: 487584)			Immediately	$ 11.87
12	848446		Bracket, Thermostat		Appelez-nous	-
13	WP489069		Screw, 8-32 X 3/8   (Replaces: 488874)			Immediately	$ 8.40
14	2148657		Control Knob		Appelez-nous	-
15	2148653		Control Panel Assembly (includes Item 16)		Appelez-nous	-
16	2148655		Hole Plug		Appelez-nous	-
17	WP489478		Screw   (Replaces: 489242)				$ 8.18
18	986021		Diffuser Assembly, Air		Appelez-nous	-
19	836667		Spacer (2)		Appelez-nous	-
20	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
21	1127488		Gasket		Appelez-nous	-
22	984658		Damper, Air				$ 8.39
23	836493		Retainer, Air Damper		Appelez-nous	-
24	2148656		Knob, Air Diffuser (includes Item 25)		Appelez-nous	-
25	837444		Knob, Retainer		Appelez-nous	-
26	2155555		Stud-hook		Appelez-nous	-
27	983359		Lens-light		Appelez-nous	-
28	2149068		Shield, Light		Appelez-nous	-
29	W11457217		Switch, Light-fzr.   (Replaces: 1115373)				$ 40.09
33	1121213		Separator, Compartment (top-front)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
