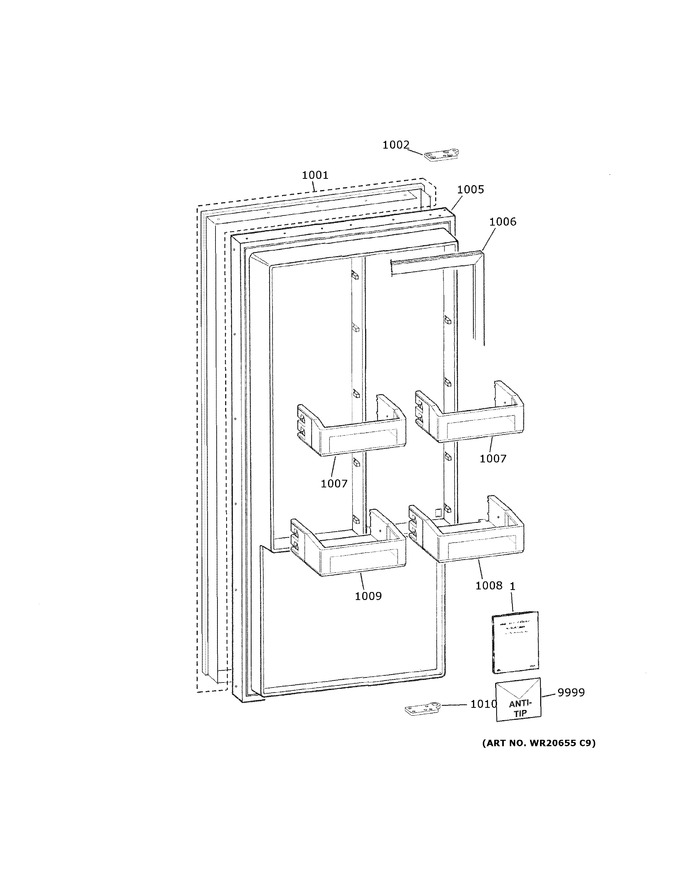

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51977 | Pm Mini Manual |
|
- | |||||
| 1001 | WR78X32606 | Stainless Single Door Wrap |
|
- | |||||
| 1002 | WR13X25052 | Hinge Asm Door Top Rh |
|
- | |||||
| 1005 | WR78X39593 | Freezer Single Door Right Swing |
|
- | |||||
| 1006 | WR78X20986 | Door Gasket Sd |
|
- | |||||
| 1007 | WG02L00043 | Bin Ff Door W/window (Replaces: WR71X10138) |
|
$ 105.03 | |||||
| 1008 | WR01L08881 | Bin Door Ff Deep Rh (Replaces: WR71X10139) |
|
$ 94.48 | |||||
| 1009 | WG03L00003 | Bin Door Ff Deep Lh (Replaces: WR71X10140) |
|
$ 107.67 | |||||
| 1010 | WR13X10657 | Hinge Door Btm |
|
- | |||||
| 9999 | WR49X21844 | Anti-tip Hardware Asm |
|
- |
