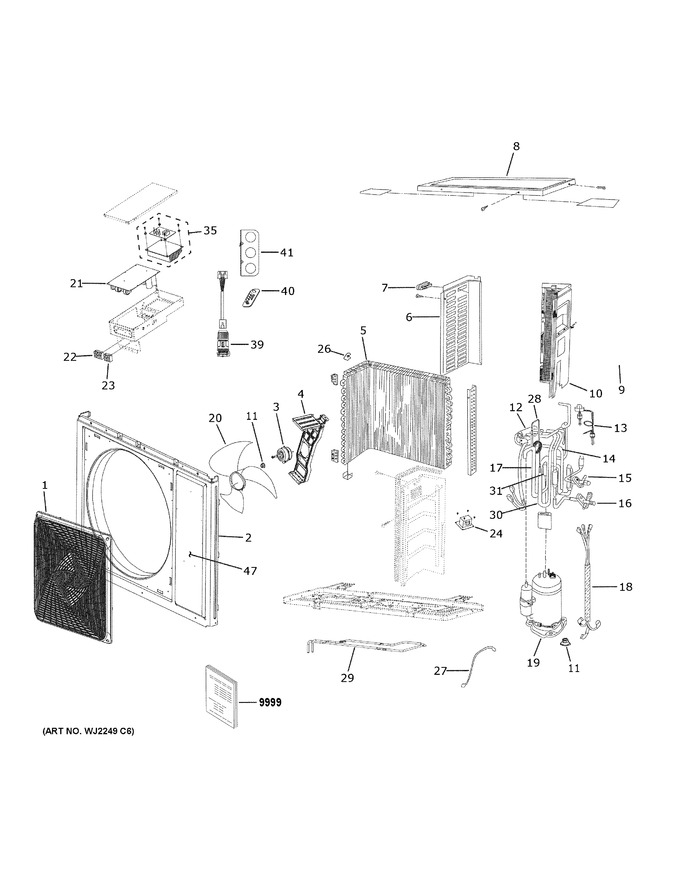

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X26394 | Grille |
|
- | |||||
| 2 | WJ76X23221 | Casing |
|
- | |||||
| 3 | WJ94X23000 | Outdoor Fan Motor |
|
$ 480.59 | |||||
| 4 | WJ65X23015 | Outdoor Fan Motor Bracket |
|
- | |||||
| 5 | WJ88X26444 | Condenser |
|
- | |||||
| 6 | WJ76X23170 | Left Side Panel |
|
- | |||||
| 7 | WJ01X24664 | Handle |
|
- | |||||
| 8 | WJ76X23231 | Top Cover |
|
- | |||||
| 9 | WJ76X23018 | Valve Cover |
|
- | |||||
| 10 | WJ76X23140 | Right Side Panel |
|
- | |||||
| 11 | WJ01X22974 | Flange Nut |
|
- | |||||
| 12 | WJ53X30854 | 4-way Valve Tube Assembly |
|
- | |||||
| 13 | WJ53X26445 | Eev Valve |
|
- | |||||
| 14 | WJ53X29532 | Discharge Tube |
|
- | |||||
| 15 | WJ53X24974 | Liquid Service Valve |
|
- | |||||
| 16 | WJ26X29534 | Vapor Service Valve |
|
- | |||||
| 17 | WJ53X29533 | Suction Tube |
|
- | |||||
| 18 | WJ35X29527 | Outdoor Wire Harness |
|
- | |||||
| 19 | WJ98X26204 | Compressor |
|
- | |||||
| 20 | WJ73X23014 | Fan Blade |
|
- | |||||
| 21 | WJ26X29666 | Power Control Board |
|
- | |||||
| 22 | WJ27X23011 | Terminal Block Indoor |
|
- | |||||
| 23 | WJ26X23520 | Terminal Block |
|
- | |||||
| 24 | WJ27X29538 | Reactor |
|
- | |||||
| 26 | WJ01X23219 | Sensor Clip |
|
- | |||||
| 27 | WJ26X23009 | Suction Sensor |
|
$ 22.15 | |||||
| 28 | WJ53X29531 | Cap Tube |
|
- | |||||
| 29 | WJ27X26437 | Compressor Heater |
|
- | |||||
| 30 | WJ53X29530 | Suction Tube 1 |
|
- | |||||
| 31 | WJ26X29529 | Gas-liquid Separator |
|
- | |||||
| 35 | WJ26X29676 | Inverter |
|
- | |||||
| 39 | WJ27X27115 | Rj45 |
|
- | |||||
| 40 | WJ76X27114 | Cover |
|
- | |||||
| 41 | WJ65X27113 | Strain Relief Bracket |
|
- | |||||
| 47 | WJ76X24672 | Front Service Panel |
|
- | |||||
| 9999 | 31-5000532 | Pm Installation Instruction |
|
- |
