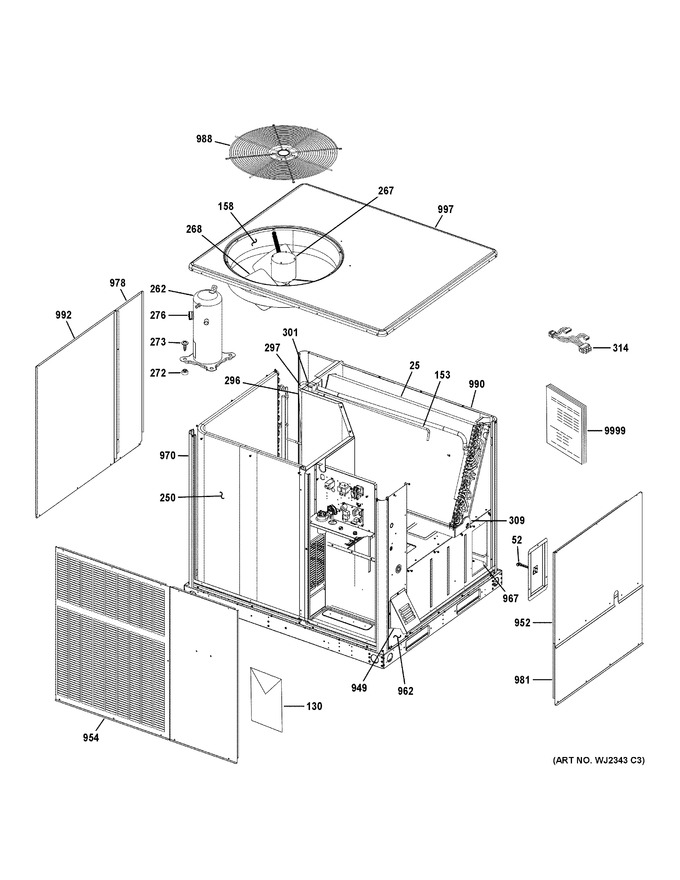

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 25 | 12J28 | Assy-coil 3/8" 2 Row Evap 613139-04-(cto |
|
- | |||||
| 52 | 22B74 | 102857-27 Limit Control (195f) |
|
- | |||||
| 130 | 537659-02 | Label - Wiring Diagram 14 Ge-(cto) |
|
- | |||||
| 153 | 18Y24 | 100579-99 Distr Assy 4tube W/piston .057 |
|
- | |||||
| 158 | 12J47 | Orifice Ring 22 I.d. X 6 100001-05-(cto) |
|
- | |||||
| 250 | 12J32 | Assy-coil Cond 1 Row 612346-02-(cto) |
|
- | |||||
| 262 | R06429D444 | Kit Acomp4 Comp/drier Comb 2t-(cto) |
|
- | |||||
| 267 | 92W51 | 100483-33 Cond Fan Mtr 1/6hp 208-230-1 |
|
- | |||||
| 268 | 10W78 | 100060-13 Fan Assy 4 Bld 24 Pitch Ccw-(c |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-04 | Bolt & Sleeve Combination-(cto) |
|
- | |||||
| 276 | 18X95 | 105172-04 Harness-compressor Molded Plug |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 18Y32 | 105139-01 Drier Suction Line Filter-(cto |
|
- | |||||
| 309 | 22C74 | 104076-03 Pan-drain Plastic Insul Sm-(ct |
|
- | |||||
| 314 | 21V36 | 103980-02 Wire Harn Pri 230/460 3p Ge-(c |
|
- | |||||
| 949 | 12B75 | 612741-01 Vent Hood-(cto) |
|
- | |||||
| 952 | R622285-02E | Panel-blower Access Sm-(cto) |
|
- | |||||
| 954 | R621996-01E | Panel -louver Front Small-(cto) |
|
- | |||||
| 962 | R622288-01E | Panel -utility G/e Sm-(cto) |
|
- | |||||
| 967 | R622313-02E | Cover-duct, Horizontal Sm-(cto) |
|
- | |||||
| 970 | R621894-01E | Post-corner Small-(cto) |
|
- | |||||
| 978 | R621888-02E | Panel -compressor Access Sm-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 988 | 12J45 | Guard-fan Wire Blk Dia 27.134 100305-08 |
|
- | |||||
| 990 | R622635-03 | Panel -rear Sm 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-02E | Panel -louver Left Side Small-(cto) |
|
- | |||||
| 997 | R611267-02E | Panel Top Sm Armstrong Txt Gray-(cto) |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
