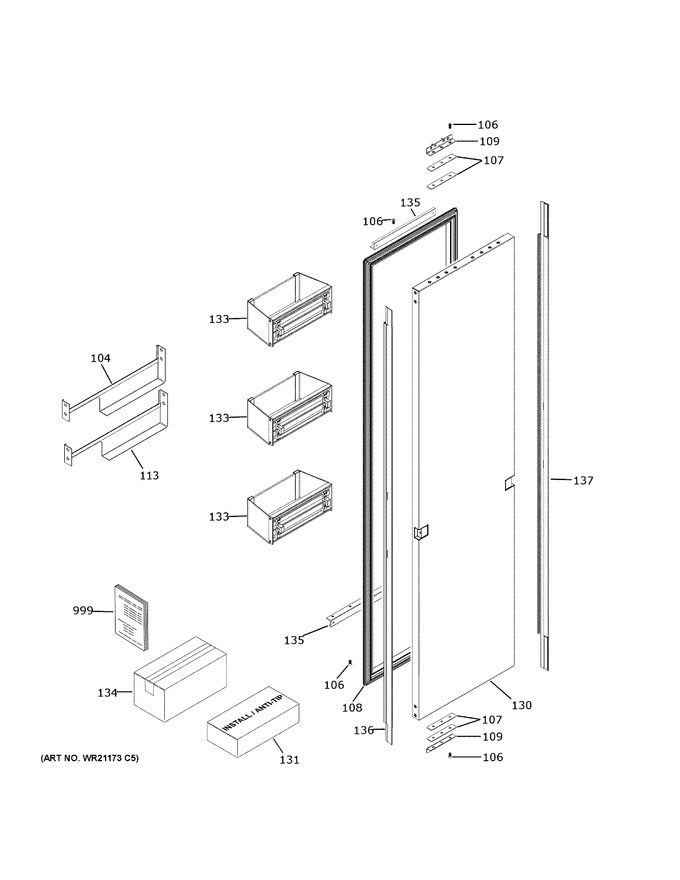

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 104 | WR02X39505 | Door Bracket Cover Rh 36" |
|
- | |||||
| 104 | WR02X47167 | Door Bracket Cover Top Fz 36" |
|
- | |||||
| 106 | WR02X29021 | Bolt T30 M6 |
|
- | |||||
| 107 | WR02X29029 | Door Hinge Shim |
|
- | |||||
| 108 | WR14X39542 | Gasket Door 36" |
|
- | |||||
| 109 | WR02X28999 | Door To Hinge Bracket |
|
- | |||||
| 113 | WR02X39506 | Door Bracket Cover Lh 36" |
|
- | |||||
| 130 | WR78X39541 | Freezer Door 36" |
|
- | |||||
| 131 | WR02X39538 | Freezer Installation Hardware 36" |
|
- | |||||
| 133 | WR71X39556 | Door Bin 36" |
|
- | |||||
| 134 | WR02X39547 | Custom Panel Bracket And Template Kit 36 |
|
- | |||||
| 135 | WR02X39543 | Panel Bracket 36" |
|
- | |||||
| 136 | WR02X32783 | Handle Side Door Trim Cover |
|
- | |||||
| 137 | WR02X29337 | Hinge Side Door Trim |
|
- | |||||
| 999 | WR01X39549 | Door Panel Template 36" |
|
- | |||||
| 999 | 31-1000191 | Pm Mini Manual And Wiring |
|
- |
