SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

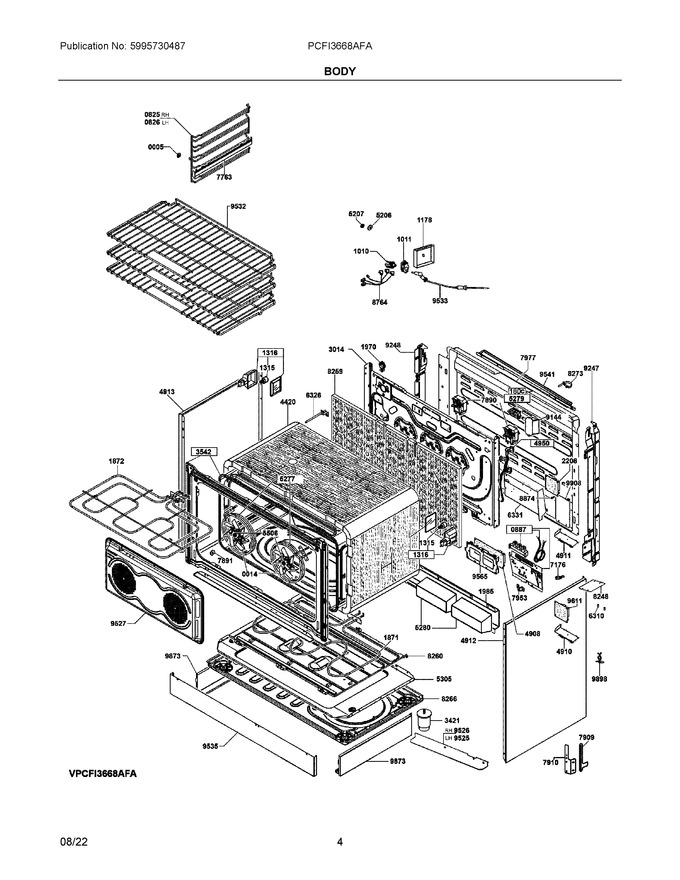

03 - Body


04 - Maiin Top / Induction Units


05 - Door / Cooling-venting


06 - Wiring Diagram


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5304527453		Bushing, Rack Support		Appelez-nous	-
14	5304527454		Blade, Fan, Convection, 7 Vane				$ 71.39
825	5304531576		Glide Rail, Rack, Rh		Appelez-nous	-
826	5304531577		Glide Rail, Rack, Lh		Appelez-nous	-
887	5304531578		Cable Assembly, Feeder, W/term Block		Appelez-nous	-
1010	4056034681		Receptacle, Meat Probe   (Replaces: 5304527481)		Appelez-nous	-
1011	5304527482		Cover, Receptacle, Meat Probe		Appelez-nous	-
1178	5304531579		Housing, Probe Shield		Appelez-nous	-
1315	318946400		Bulb, Oven Lamp, Halogen, 40w, 120v, (2)   (Replaces: 5304527465)			Immediately	$ 49.32
1316	5304527466		Lamp Assembly, Halogen, Oven, 40w, 120v, (2), W/bulb				$ 145.80
1871	5304531580		Element, Oven Bake, 1700w		Appelez-nous	-
1872	5304531581		Element, Oven Broil		Appelez-nous	-
1970	5304527468		Clamp, Cable, (6)		Appelez-nous	-
1985	5304528981		Support, Counterweight		Appelez-nous	-
2208	5304531582		Pc Board, Filter Card				$ 233.70
3014	5304531584		Panel, Back		Appelez-nous	-
3421	5304531585		Foot Kit, Cabinet, (includes 4)				$ 203.85
3542	5304527716		Liner, Oven Cavity		Appelez-nous	-
4420	5304527719		Insulation, Oven Wrapper		Appelez-nous	-
4908	5304531622		Pc Board, Power, Main				$ 553.06
4910	5304531624		Support, Pc Board		Appelez-nous	-
4911	5304531625		Holder, Assembly, Filter		Appelez-nous	-
4912	5304531626		Panel, Side, Stainless, Rh				$ 221.85
4913	5304531627		Panel, Side, Stainless, Lh				$ 222.30
4950	5304531638		Harness, Wiring, Main		Appelez-nous	-
5206	5304527489		Washer		Appelez-nous	-
5207	5304527490		Nut		Appelez-nous	-
5277	5304527712		Element, Convection, 3380w, (2)				$ 201.29
5279	5304527474		Thermostat, Rear, 180 Deg. C				$ 166.73
5280	5304527475		Counterweight, (2)		Appelez-nous	-
5305	5304527720		Shield, Hidden Bake, Lower		Appelez-nous	-
5506	5304527436		Nut, Fan Blade, Convection				$ 75.08
6310	5304527491		Spacer, (4)		Appelez-nous	-
6326	5304527492		Probe, Oven Temp, Pt1000 Ul			Immediately	$ 210.47
6331	5304527494		Power Electronic, Unit				$ 331.44
7176	5304527437		Clamp, Hose, Rte12000		Appelez-nous	-
7763	5304527498		Glide Kit, Oven Rack, Rh And Lh, Telescopic				$ 240.61
7890	5304527722		Motor, Convection Fan, (2)			Immediately	$ 237.12
7891	5304531574		Washer		Appelez-nous	-
7909	5304527501		Hook, Attachment		Appelez-nous	-
7910	5304527502		Support, Attachment Hook		Appelez-nous	-
7953	5304527503		Bracket, Attachment		Appelez-nous	-
7977	5304531575		Panel, Back, Main				$ 166.24
8248	5304527524		Shield, Feeder Board		Appelez-nous	-
8259	5304527700		Insulation, Oven Back		Appelez-nous	-
8260	5304527701		Burner Box, Support, Hidden Bake		Appelez-nous	-
8266	5304527703		Base, Oven Bottom				$ 225.33
8273	5304527697		Clamp, Wiring		Appelez-nous	-
8764	5304527530		Harness, Wiring, Meat Probe				$ 146.01
8874	5304527533		Spacer, Pc Board		Appelez-nous	-
9144	5304527783		Filter, Electrical				$ 203.44
9247	5304527457		Brace, Oven, Rh Rear		Appelez-nous	-
9248	5304527458		Brace, Oven, Lh Rear		Appelez-nous	-
9525	5304527731		Shield, Guard, Lh Rear		Appelez-nous	-
9526	5304527732		Shield, Guard, Rh Rear		Appelez-nous	-
9527	5304527733		Cover, Convection Unit		Appelez-nous	-
9532	5304527737		Rack, Oven, (3), Handled		Appelez-nous	-
9533	5304527535		Probe, Meat Temp				$ 181.40
9535	5304527738		Plinth, Front, Lower				$ 226.95
9541	5304527740		Tray, Drip, Rear				$ 167.98
9565	5304527743		Support, Power Board				$ 133.17
9611	5304527540		Pc Board, Feeder, 120v-12/5v			Immediately	$ 364.53
9873	5304527771		Plinth Kit, Assembly, Lh And Rh Side				$ 257.14
9898	5304527444		Clip, Cable, Stringing		Appelez-nous	-
9908	5304527568		Shield, Protection		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
