01 - Cover Sheet

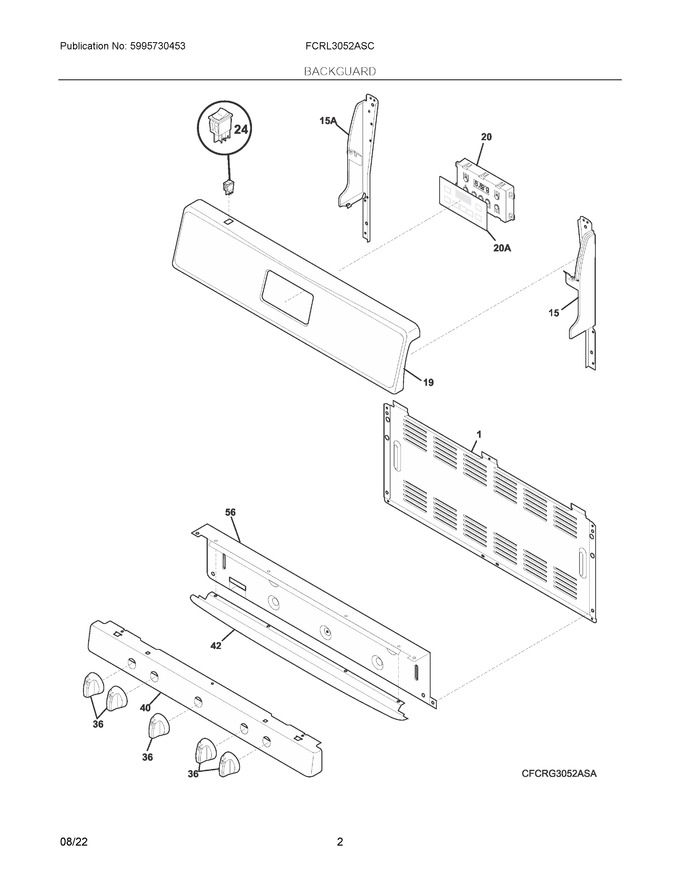

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 64.04
15	5304493644		Cap, End, Black, Rh				$ 74.15
19	5304509065		Panel, Backguard, Stainless				$ 312.17
20	5304521341		Control, Electronic, Es100				$ 223.41
24	5304527841		Switch, Rocker, Black			Immediately	$ 12.64
36	5304507386		Knob, Top Valve, Black				$ 74.15
40	316605358		Panel, Manifold, Black		Appelez-nous	-
42	808754601		Deflector, Backguard				$ 86.63
56	316230708		Shield, Backguard, Inner				$ 68.51
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 74.15
20A	316220729		Overlay, Clock, Black			Immediately	$ 29.92
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55

    View Diagram in Separate Window       Print Part List
