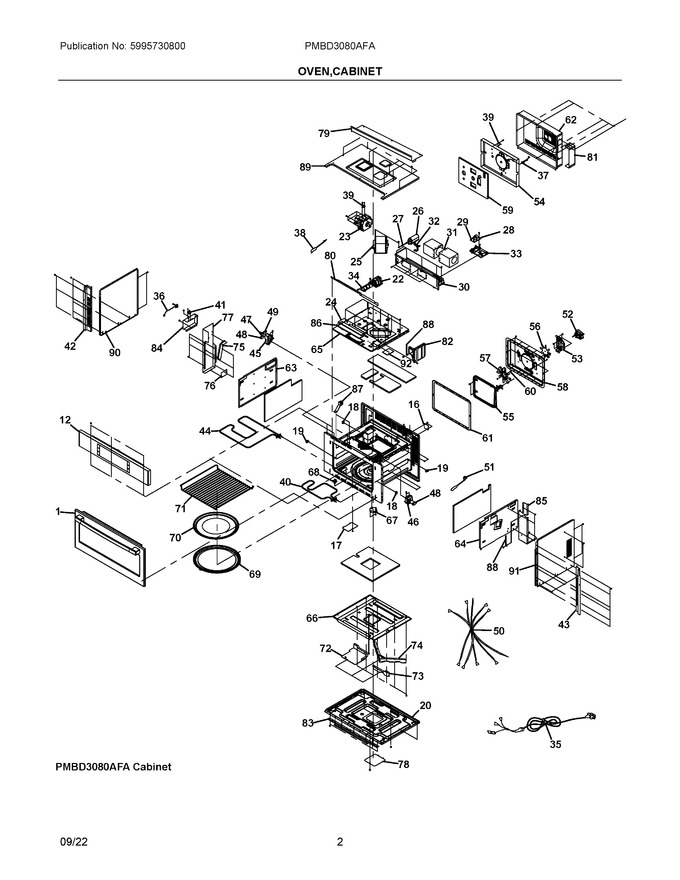

View Diagram in Separate Window
Print Part List
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304532664 | Door Assembly, Complete, W/handle |
|
$ 755.83 | |||||
| 12 | 5304532662 | Control Panel, Assembly, Complete |
|
Immediately | $ 561.27 | ||||
| 16 | 5304515311 | Cover, Light Block |
|
- | |||||
| 17 | 5304514227 | Cover, Wave Guide |
|
Immediately | $ 9.64 | ||||
| 18 | 5304514283 | Support, Shelf, Lhf/rhr |
|
$ 12.16 | |||||
| 19 | 5304514287 | Support, Shelf, Rhf/lhr |
|
$ 12.05 | |||||
| 20 | 5304514238 | Base Plate |
|
$ 137.81 | |||||
| 22 | 5304514247 | Cover, Lamp |
|
$ 13.39 | |||||
| 23 | 5304514250 | Magnetron |
|
Immediately | $ 482.15 | ||||
| 24 | 5304518909 | Bracket, Control Board, Main |
|
$ 43.65 | |||||
| 25 | 5304514249 | Transformer, High Voltage |
|
$ 361.36 | |||||
| 26 | 5304513458 | Capacitor, High Voltage |
|
Immediately | $ 138.21 | ||||
| 27 | 5304513459 | Diode, High Voltage |
|
Immediately | $ 33.74 | ||||
| 28 | 5304525109 | Filter, Noise, Electronic |
|
$ 95.55 | |||||
| 29 | 5304514258 | Fuse |
|
Immediately | $ 15.37 | ||||
| 30 | 5304514254 | Bracket, Exhaust Fan |
|
- | |||||
| 31 | 5304514255 | Exhaust Fan, Assembly, W/motor |
|
$ 246.17 | |||||
| 32 | 5304513482 | Holder, Hv Capacitor |
|
- | |||||
| 33 | 5304515326 | Holder, Noise Filter |
|
$ 20.88 | |||||
| 34 | 5304527876 | Bulb, Lamp |
|
- | |||||
| 35 | 5304515312 | Power Cord, Electric |
|
$ 192.78 | |||||
| 36 | 5304509652 | Sensor, Humidity |
|
$ 339.40 | |||||
| 37 | 5304527877 | Sensor, Temperature |
|
$ 38.56 | |||||
| 38 | 5304514252 | Fuse Assembly, High Voltage |
|
$ 36.20 | |||||
| 39 | 5304515313 | Thermostat, 160/95 |
|
Immediately | $ 35.18 | ||||
| 40 | 5304515314 | Heater, Lower |
|
- | |||||
| 41 | 5304514270 | Thermostat, Heater, 130c/120c |
|
$ 20.09 | |||||
| 42 | 5304515315 | Bracket, Trim, Lh |
|
Immediately | $ 46.59 | ||||
| 43 | 5304515316 | Bracket, Trim, Rh |
|
Immediately | $ 53.01 | ||||
| 44 | 5304514233 | Heater, Upper |
|
$ 73.10 | |||||
| 45 | 5304515317 | Latch Board, Lh |
|
Immediately | $ 34.53 | ||||
| 46 | 5304515318 | Latch Board, Rh |
|
Immediately | $ 35.32 | ||||
| 47 | 5304514265 | Rod, Release |
|
Immediately | $ 5.79 | ||||
| 48 | 5304514264 | Switch, Micro |
|
Immediately | $ 40.05 | ||||
| 49 | 5304514266 | Switch, Micro, Monitor |
|
Immediately | $ 33.95 | ||||
| 50 | 5304515319 | Harness, Wiring, Main |
|
$ 319.97 | |||||
| 51 | 5304527878 | Harness, Wiring, Motor |
|
$ 18.11 | |||||
| 52 | 5304514299 | Motor, Convection |
|
$ 125.95 | |||||
| 53 | 5304514298 | Bracket, Convection Mtr |
|
$ 13.66 | |||||
| 54 | 5304514301 | Cover, Convection |
|
- | |||||
| 55 | 5304514293 | Element, Convection |
|
Immediately | $ 63.46 | ||||
| 56 | 5304514297 | Fan Blade, Cooling |
|
$ 12.37 | |||||
| 57 | 5304514294 | Fan Blade, Convection |
|
$ 43.96 | |||||
| 58 | 5304514296 | Cover, Element |
|
- | |||||
| 59 | 5304514300 | Insulation, Convection |
|
- | |||||
| 60 | 5304514295 | Bushing, Convection Mtr |
|
- | |||||
| 61 | 5304514292 | Gasket, Convection, Silicone |
|
- | |||||
| 62 | 5304514261 | Cover, Back |
|
- | |||||
| 63 | 5304514268 | Insulation, Assembly, Lh |
|
- | |||||
| 64 | 5304514275 | Insulation, Assembly, Rh |
|
- | |||||
| 65 | 5304514244 | Insulation, Assembly, Upper |
|
- | |||||
| 66 | 5304518904 | Shield Plate, Heat, Bottom |
|
- | |||||
| 67 | 5304514231 | Motor, Turntable |
|
Immediately | $ 71.06 | ||||
| 68 | 5304514229 | Coupler, Tray |
|
Immediately | $ 72.78 | ||||
| 69 | 5304514228 | Tray, Metal |
|
Immediately | $ 225.47 | ||||
| 70 | 5304514285 | Tray, Glass |
|
$ 376.30 | |||||
| 71 | 5304514284 | Shelf, Wire |
|
$ 90.77 | |||||
| 72 | 5304514235 | Air Guide, Lower 1 |
|
- | |||||
| 73 | 5304514236 | Air Guide, Lower 2 |
|
- | |||||
| 74 | 5304514237 | Air Guide, Lower 3 |
|
- | |||||
| 75 | 5304515322 | Bracket, Guide Plate |
|
$ 11.81 | |||||
| 76 | 5304515321 | Bracket, Guide Plate |
|
- | |||||
| 77 | 5304515320 | Air Tunnel, Assembly, Lh |
|
- | |||||
| 78 | 5304514239 | Cover, Motor |
|
- | |||||
| 79 | 5304518908 | Bracket, Cabinet, Upper |
|
- | |||||
| 80 | 5304514282 | Wind Guide, Cavity, Upper |
|
- | |||||
| 81 | 5304514286 | Wind Guide, Back Cover |
|
- | |||||
| 82 | 5304515324 | Air Guide, Assembly, Lamp |
|
$ 19.69 | |||||
| 83 | 5304515325 | Air Guide, Front |
|
- | |||||
| 84 | 5304514269 | Air Duct, Lh |
|
- | |||||
| 85 | 5304515323 | Air Guide, Assembly, Rh |
|
- | |||||
| 86 | 5304527879 | Pc Board, Power |
|
Immediately | $ 433.76 | ||||
| 87 | 5304514242 | Holder, Wire |
|
- | |||||
| 88 | 5304515327 | Support, Wire |
|
$ 10.55 | |||||
| 89 | 5304514259 | Outer Case, Upper |
|
- | |||||
| 90 | 5304514272 | Outer Case, Lh |
|
- | |||||
| 91 | 5304514277 | Outer Case, Rh |
|
- | |||||
| 92 | 5304514241 | Glass, Lamp |
|
$ 16.07 |
