SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

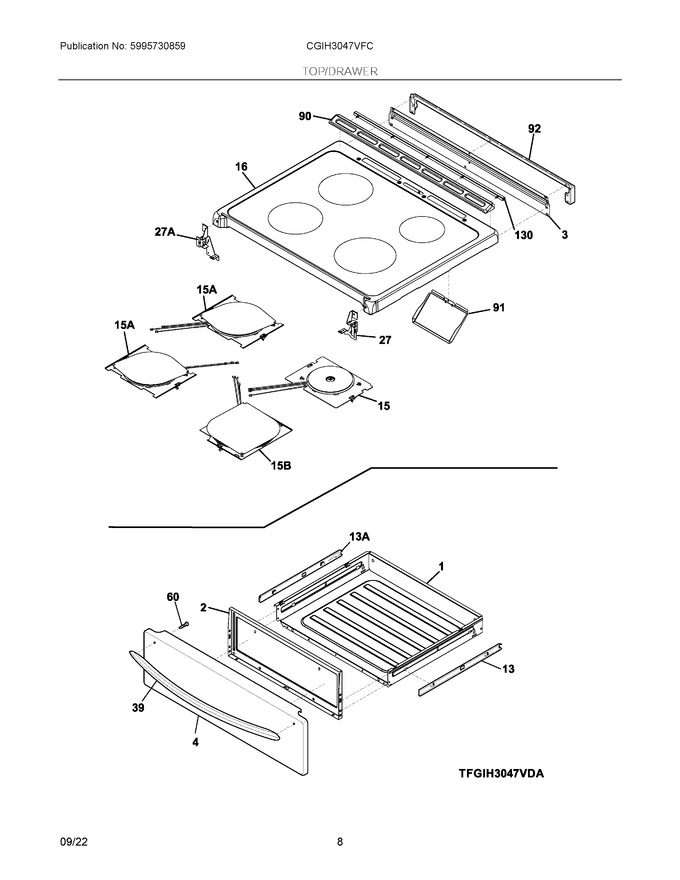

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Warmer				$ 139.38
2	5304527988		Liner, Drawer			Immediately	$ 29.49
3	5304514133		Shield, Rear Wall, Upper				$ 38.77
4	5304517477		Panel, Drawer, Stainless				$ 202.73
13	316415000		Glide, Warmer, Inner Rh				$ 65.36
15	387404760		Element Assembly, Induction Coil, 140mm, Rh Rear   (Replaces: 387404759)			Immediately	$ 96.47
16	5304519397		Smoothtop, Assembly, Glass/steel, Black			Immediately	$ 664.40
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 15.17
39	5304532118		Handle, Door/drawer, Stainless   (Replaces: 5304518029)				$ 125.42
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	5304514157		Trim, Vent, Black, Rear				$ 68.25
91	5304514354		Deflector, Moisture, (2)		Appelez-nous	-
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 182.01
130	808931802		Seal, Maintop, Silicone, Rear				$ 44.66
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
15A	387404870		Element Assembly, Induction Coil, 180mm, Lh Rear/front   (Replaces: 387404866)			Immediately	$ 94.40
15B	387761249		Element Assembly, Induction Coil, 210mm, Rh Front   (Replaces: 387761248)			Immediately	$ 117.98
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 15.17
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55

    View Diagram in Separate Window       Print Part List
