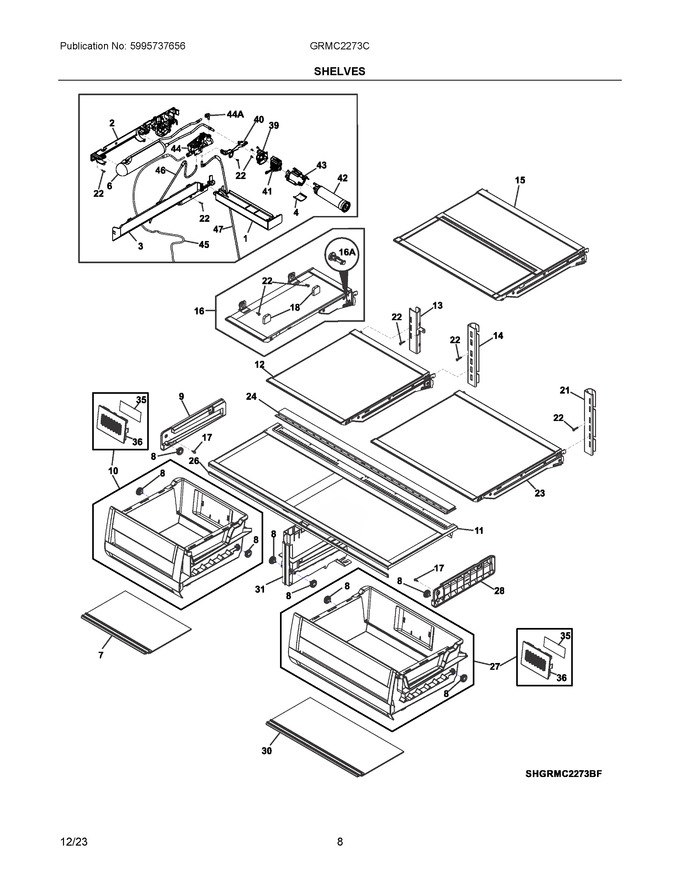

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529551		Cover, Filter Facia				$ 67.15
2	5304529543		Support, Water Valve, & Tank		Appelez-nous	-
3	5304529550		Cover, Water Tank		Appelez-nous	-
4	5304529552		Seal, Foam, 37 X 70mm		Appelez-nous	-
6	5304523037		Tank, Water, Disp Reservoir				$ 199.76
7	5304519123		Cover, Mullion Storage, Glass, Lh				$ 39.71
8	5304519124		Roller, Crisper Glide				$ 18.71
9	5304519125		Rail, Crisper, Lh Side		Appelez-nous	-
10	5304529585		Drawer Assembly, Crisper, Lh, W/rollers				$ 154.88
11	5304529587		Cover Assembly, Crispers, W/glass		Appelez-nous	-
12	5304523041		Shelf Assembly, Cantilever, Glass, Lh				$ 316.83
13	5304519129		Bracket, Cantilever Shlf, Lh		Appelez-nous	-
14	5304519130		Bracket, Cantilever Shlf, Center				$ 58.28
15	5304523044		Shelf Assembly, Cantilever, Glass, Upper				$ 276.60
16	5304523045		Shelf Assembly, Flip Up, Glass, Lh				$ 352.95
17	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
18	5304519133		Cover, Screw, Small				$ 9.10
21	5304519136		Bracket, Cantilever Shlf, Rh				$ 59.85
22	811949503		Screw, Truss, 4.2 X 13				$ 3.37
23	5304523047		Shelf Assembly, Cantilever, Glass, Rh				$ 312.62
24	5304523048		Housing Assembly, Auto Humidity, W/membrane				$ 73.31
26	5304519140		Gasket, Crisper Cover				$ 26.64
27	5304537361		Drawer Assembly, Crisper, Rh, W/rollers   (Replaces: 5304529584)				$ 144.54
28	5304519142		Rail, Crisper, Rh Side				$ 21.91
30	5304519143		Cover, Mullion Storage, Glass, Rh			Immediately	$ 51.30
31	5304532661		Divider, Crisper Cover				$ 67.41
35	FRPAPK2RF		Frigidaire Pa Pk-2 Refill			Immediately	$ 35.71
36	5304529586		Cover, Freshness Boost				$ 19.28
39	5304536610		Cover, Manifold, Rear   (Replaces: 5304529548)				$ 3.26
40	5304529545		Guide, Water Tube			Immediately	$ 20.28
41	140156010062		Manifold, Water Filter   (Replaces: 5304529546)			Immediately	$ 60.64
42	FPPWFU02		Frig Purepour Wf-2 Connectors			Immediately	$ 98.67
43	5304529547		Cover, Manifold, Front				$ 72.50
44	5304529544		Water Valve, Assembly, Double			Immediately	$ 165.21
45	5304524353		Tubing, Valve, To Door Hinge			Immediately	$ 40.06
46	5304527422		Tubing, Valve, To Ff Ice Maker			Immediately	$ 18.03
47	5304529549		Tube, Water			Immediately	$ 25.62
16A	5304523682		Pin, Interlock, Flip Up Shelf		Appelez-nous	-
44A	5304523053		Connector, Tubing, Quick Connect			Immediately	$ 28.82
NI	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
NIA	5304519098		Screw, Trilob, M4 X 12				$ 3.37
NIA	5304529553		Seal, Foam, Inlet Tube		Appelez-nous	-
