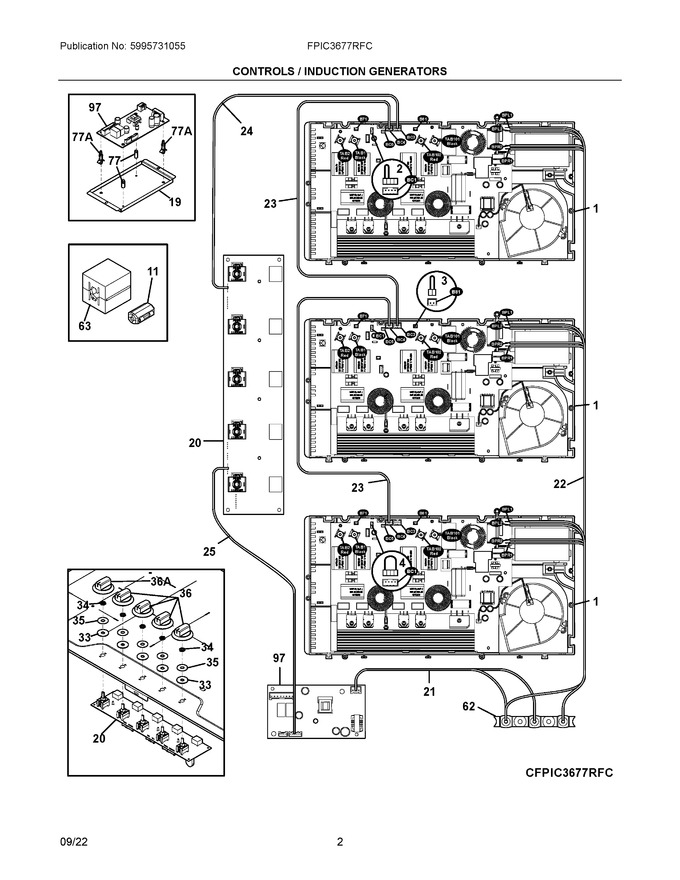

02 - Controls / Induction Generators
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304534019 | Generator Assembly, Circuit Board, 2 Zone |
|
Immediately | $ 427.50 | ||||
| 2 | 5304506068 | Wire, Jumper, Lh Generator, Bc1 |
|
Immediately | $ 10.23 | ||||
| 3 | 387540300 | Bridging Plug, Dummy Ntc, B81, Center Gen. |
|
$ 4.27 | |||||
| 4 | 318578302 | Wire, Jumper, Generator, Bc1 |
|
$ 20.48 | |||||
| 11 | 5304514339 | Filter, Ferrite Choke |
|
Immediately | $ 44.39 | ||||
| 19 | 5304506069 | Box, Protection, Smps1 |
|
$ 12.97 | |||||
| 20 | 808844003 | Board Assembly, User Interface, Proteus |
|
$ 427.76 | |||||
| 21 | 5304506070 | Harness, Wiring, Power Board, To Term. Block |
|
$ 20.73 | |||||
| 22 | 5304522492 | Harness, Wiring, Main |
|
Immediately | $ 116.29 | ||||
| 23 | 318578332 | Harness, Wiring, Communication, Generators |
|
Immediately | $ 60.39 | ||||
| 24 | 5304506103 | Harness, Wiring, Ui Board, To Lh Zone |
|
$ 16.40 | |||||
| 25 | 5304506102 | Harness, Wiring, Ui Board, To Power Board |
|
$ 24.16 | |||||
| 33 | 318146012 | Bushing, Control, (4) |
|
$ 17.33 | |||||
| 34 | 316247700 | Nut, Mounting |
|
$ 20.22 | |||||
| 35 | 318086007 | Washer, Flat, (4), Control |
|
$ 11.03 | |||||
| 36 | 5304506074 | Knob, Control, Single |
|
$ 100.28 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 29.66 | ||||
| 63 | 5304506076 | Filter, Ferrite Choke |
|
Immediately | $ 46.68 | ||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 49.61 | |||||
| 97 | 808844401 | Board Assembly, Power |
|
Immediately | $ 333.29 | ||||
| 36A | 5304506075 | Knob, Control, Dual |
|
$ 97.74 | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| NI | 5304522493 | Box & Wires, Assembly |
|
- | |||||
| NI | 305309704 | Screw, St, 4.2 : 12, (9) |
|
- | |||||
| NI | 5304534022 | Harness Assembly, Filtering, W/capacitors |
|
- | |||||
| NI | 131243700 | Screw, B4, 2 X 9, 5 (Replaces: 330447900) |
|
$ 3.73 | |||||
| NI | 202855101 | Holder, Cable |
|
$ 1.58 | |||||
| NIA | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NIA | 305376201 | Nut, Terminal Block, (2) |
|
- | |||||
| NIA | 305309608 | Screw, M4 |
|
- | |||||
| NIB | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- |
