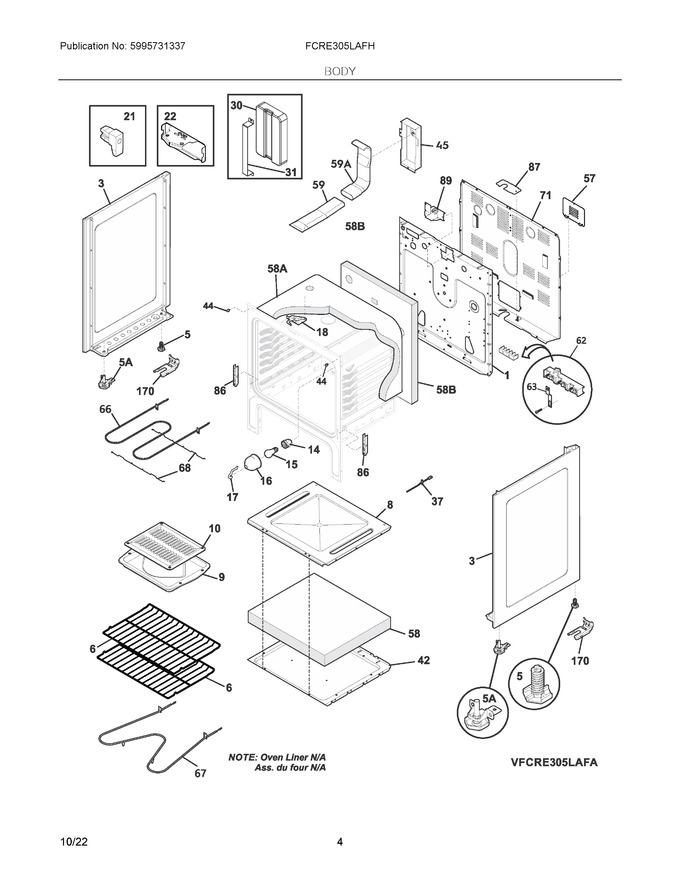

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401806		Panel, Main Back				$ 93.25
3	316400144		Panel, Bodyside, Black, Rh			Immediately	$ 149.65
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	316496201		Rack, Oven			Immediately	$ 114.98
8	316400601		Panel, Oven Bottom				$ 139.86
9	316081900		Pan, Broiler				$ 65.89
10	316082000		Insert, Broiler Pan				$ 68.85
14	316116400		Receptacle, Oven Light			Immediately	$ 62.33
15	316538904		Lamp, Oven Light			Immediately	$ 22.75
16	5304524341		Lens, Oven Light, Glass			Immediately	$ 19.07
17	316087500		Retainer, Lens				$ 63.00
18	5304520383		Cover, Front Frame		Appelez-nous	-
21	316408000		Clip, Bodyside				$ 20.22
22	316286300		Bracket-bodyside, (2)				$ 19.69
30	5304527904		Counterweight, Concrete Block				$ 33.86
31	5304527899		Bracket, Concrete Block		Appelez-nous	-
37	316490000		Probe, Oven Temp			Immediately	$ 64.78
42	316400701		Shield, Wool, Lower				$ 180.33
44	316517600		Bumper, Front, Main				$ 13.39
45	316234100		Shield, Wire, Vent Tube				$ 77.96
57	316283600		Cover, Access				$ 13.89
58	316403805		Insulation, Oven Bottom		Appelez-nous	-
59	316208201		Tube, Oven Vent, Lower				$ 85.84
62	5303935271		Terminal Block Kit				$ 81.73
63	316278800		Plate, Grounding Strap		Appelez-nous	-
66	316203200		Element, Broil, 4 Pass			Immediately	$ 182.72
67	316075103		Element, Bake, 4 Pass			Immediately	$ 47.07
68	316404002		Support, Element, Broil				$ 9.72
71	316283204		Shield, Rear Wall				$ 62.36
86	316441300		Receptacle, Hinge				$ 24.41
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 21.01
3A	316400145		Panel, Bodyside, Black, Lh			Immediately	$ 148.81
58A	316406605		Insulation, Oven Wrapper				$ 51.40
58B	316406505		Insulation, Oven Back				$ 30.33
59A	316208304		Tube, Oven Vent, Upper				$ 88.99
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 16.76
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316210800		Plug, Hole, Light Switch				$ 11.81
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 14.96
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 13.39
NI	316506000		Bracket, Support, Oven Bottom, (2)				$ 5.06
NI	316282700		Screw, W/washer, 8-18				$ 11.03
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5304520707		Harness, Wiring, Main				$ 152.24
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
NIA	316542600		Plate, Grounding Strap		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIC	316541700		Template, Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
