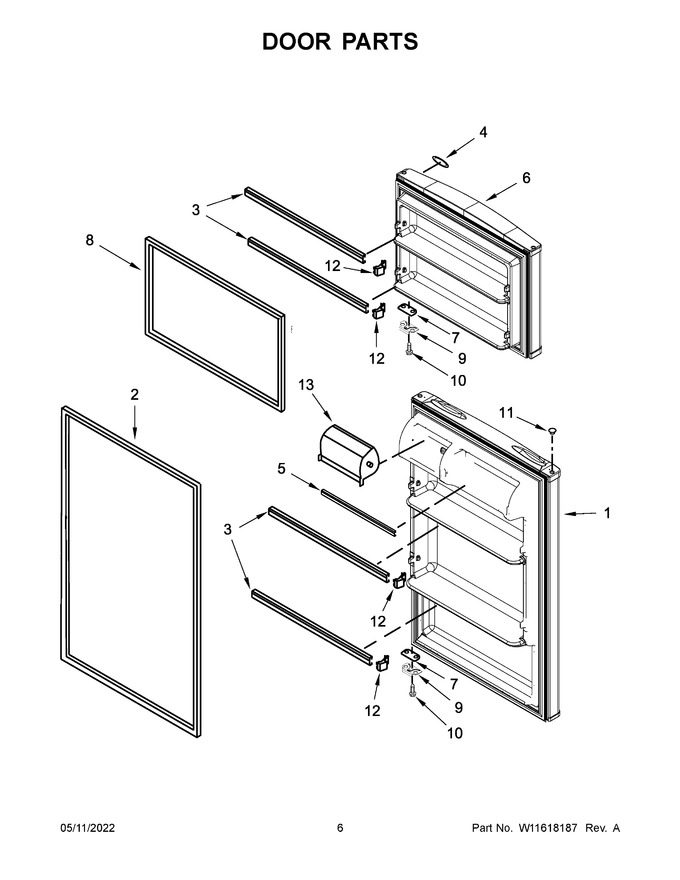

04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10681318 | Refrigerator Door (includes Illustration 2 & Molded Door Handle) (stainless) (Replaces: W10681318) |
|
$ 477.44 | |||||
| 2 | W10244874 | Gasket, Door (grey) |
|
$ 233.24 | |||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 4 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 5 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 127.34 | ||||
| 6 | LW10681389 | Freezer Door (includes Illustration 8 & Molded Door Handle) (stainless) (Replaces: W10681389) |
|
$ 498.32 | |||||
| 7 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 8 | W11661186 | Gasket, Door (grey) (Replaces: W10244875) |
|
Immediately | $ 230.06 | ||||
| 9 | W10492012 | Bracket, Door Stop |
|
$ 16.85 | |||||
| 10 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 11 | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 73.21 |
