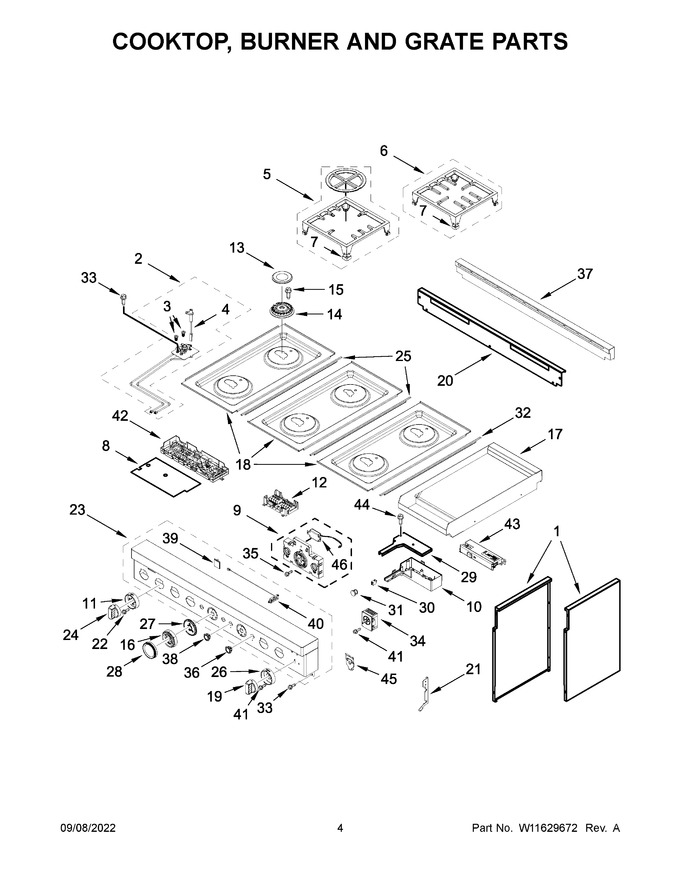

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11333305		Assembly, Orifice Holder (left Front)   (Replaces: W10892793)				$ 125.39
3	W11643164		Orifice, Main (17.4k) (left Front, Rightcenter Front)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter (left Front, Right Center Front)   (Replaces: W11238757)			Immediately	$ 23.48
5	W11380124		Burner, Grate (with Wok Ring)   (Replaces: W11291183)			Immediately	$ 200.19
6	W11380128		Burner, Grate   (Replaces: W11291179)			Immediately	$ 183.04
7	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492304		User Interface   (Replaces: W11436336)			Immediately	$ 399.40
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11380146		Bezel (front Burners)   (Replaces: W10881642)				$ 65.07
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 451.62
13	W11344538		Cap, Burner (black (includes 6))   (Replaces: W11121390)			Immediately	$ 141.29
14	W11344539		Spreader, Flame (high) (left Front, Right Center Front)   (Replaces: W10891746)			Immediately	$ 141.16
15	W11643628		Screw (8-18 X 1")   (Replaces: W11323261)				$ 14.75
16	W11500864		Knob, Oven Mode (stainless (for 18" Oven))		Appelez-nous	-
17	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
18	W11344755		Panel, Cooktop (black (left))   (Replaces: W11038235)				$ 199.76
19	W11392643		Knob, Griddle (stainless)   (Replaces: W10912167)		Appelez-nous	-
20	W10323252		Trim, Island Insert				$ 207.83
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11509770		Screw   (Replaces: W11328357)				$ 14.23
23	W11728205		Panel, Control   (Replaces: W10877951)				$ 987.63
24	W11380561		Knob, Burner (stainless (left Rear, Left Center Front, Right Center Rear))   (Replaces: W10912166)			Immediately	$ 81.20
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11388057		Bezel, Griddle   (Replaces: W10886700)		Appelez-nous	-
27	W11548484		Bezel, Oven (stainless)   (Replaces: W11500871)				$ 61.19
28	W11500869		Knob, Oven Temperature (stainless (for 18" Oven))		Appelez-nous	-
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11241510		Button Assembly, Oven Start			Immediately	$ 48.76
37	W11516014		Island Trim   (Replaces: W11476244)				$ 443.60
38	W11241511		Button Assembly, Oven Light			Immediately	$ 46.19
39	W10896366		Assembly, Light Pipe				$ 108.38
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	7101P30960		Screw		Appelez-nous	-
42	W11406545		Manager, Appliance (powermax)   (Replaces: W11172295)				$ 470.78
43	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
46	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
11A	W11380145		Bezel (rear Burners)   (Replaces: W10883433)				$ 65.07
14A	W11344742		Spreader, Flame (low) (left Rear, Left Center Front, Right Center Rear)   (Replaces: W10891974)			Immediately	$ 134.12
14B	W11344746		Spreader, Flame (aux) (left Center Rear)   (Replaces: W10891978)			Immediately	$ 133.20
15A	W11678580		Screw (8-18 X 1/2")   (Replaces: W11323309)				$ 14.78
16A	W11548479		Knob, Oven Mode (stainless (for 30" Oven))   (Replaces: W11500865)				$ 139.51
18A	W11344757		Panel, Cooktop (black (left Center))   (Replaces: W11038257)				$ 199.76
18B	W11392645		Panel, Cooktop (black (right Center))   (Replaces: W11038243)				$ 491.89
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
24A	W11380562		Knob, Burner (stainless (left Front, Left Center Rear, Right Center Front))   (Replaces: W10883172)				$ 79.24
28A	W11548477		Knob, Oven Temperature (stainless (for 30" Oven))   (Replaces: W11500868)				$ 149.89
2A	W11384764		Assembly, Orifice Holder (left Rear)   (Replaces: W10892492)				$ 119.91
2B	W11398670		Assembly, Orifice Holder (left Center Front)   (Replaces: W11159461)				$ 117.04
2C	W11398674		Assembly, Orifice Holder(left Center Rear)   (Replaces: W10892808)		Appelez-nous	-
2D	W11319743		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892505)				$ 125.13
2E	W11398676		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892446)				$ 123.64
3A	W11672510		Orifice, Main (15k) (left Rear, Left Center Front, Right Centerrear)   (Replaces: W10892419)			Immediately	$ 107.87
3B	W11661909		Orifice, Simmer (2.6k) (left Front, Right Center Front)   (Replaces: W10892435)			Immediately	$ 74.14
3C	W10892438		Orifice, Simmer (5k) (left Center Rear)				$ 99.86
4A	W11114379		Igniter (left Rear)			Immediately	$ 66.44
4B	W11628654		Igniter (left Center Front, Left Center Rear, Right Center Rear)   (Replaces: W10892340)			Immediately	$ 54.92
