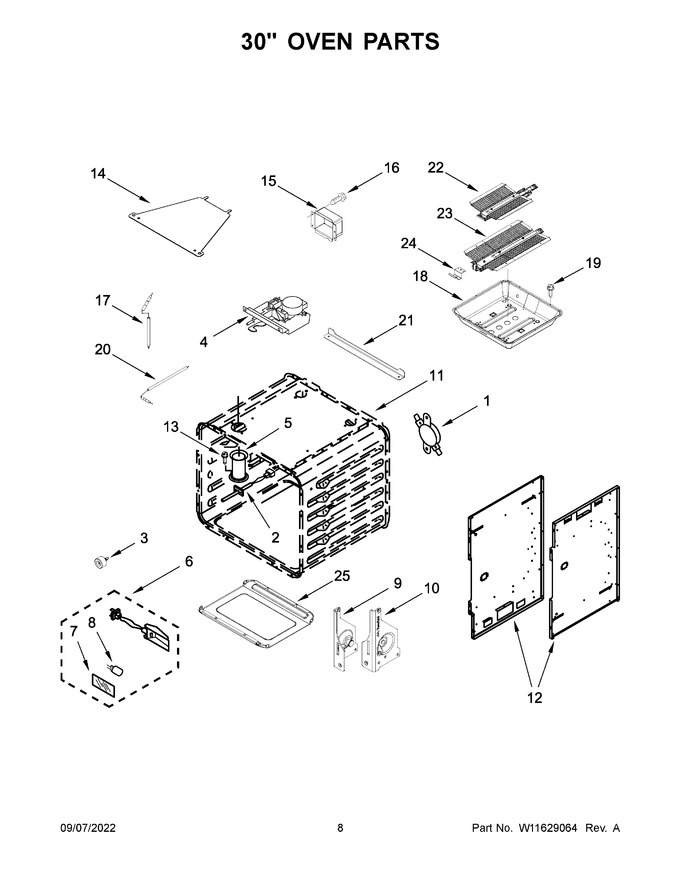

05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4450249		Thermostat (tod)   (Replaces: 4450249)			Immediately	$ 211.50
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
3	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
5	W10145743		Tube, Vent		Appelez-nous	-
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W11096293		Receiver, Hinge (right)		Appelez-nous	-
11	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
12	W11320145		Chassis, Side (left)   (Replaces: W11102297)				$ 254.37
13	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
14	W10160858		Cover, Latch				$ 76.94
15	W10308051		Box, Broil		Appelez-nous	-
16	7101P43460		Screw		Appelez-nous	-
17	W11355920		Electrode, Broil   (Replaces: W11182863)				$ 73.46
18	WPW10145744		Support, Bake Pan   (Replaces: W10145744)				$ 214.15
19	WP12992902		Screw   (Replaces: 12992902)				$ 11.91
20	W11355922		Electrode, Bake   (Replaces: W11205400)			Immediately	$ 70.19
21	W10317437		Bracket, Broil Standoff		Appelez-nous	-
22	W11643161		Burner, Bake   (Replaces: W10878504)			Immediately	$ 185.14
23	W11661180		Burner, Broil   (Replaces: W10311335)				$ 175.93
24	W10308040		Bracket, Bake Burner		Appelez-nous	-
25	W11661576		Pan, Oven Bottom   (Replaces: W10496809)			Immediately	$ 173.11
12A	W11320144		Chassis, Side (right)   (Replaces: W11102296)				$ 246.66
NI	W11688549		Insulation, Back, 30   (Replaces: W11109145)		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11684890		Insulation, Bottom   (Replaces: W10299354)		Appelez-nous	-
NI	W11661177		Insulation, Wrap, 30   (Replaces: W10282810)				$ 162.50
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
