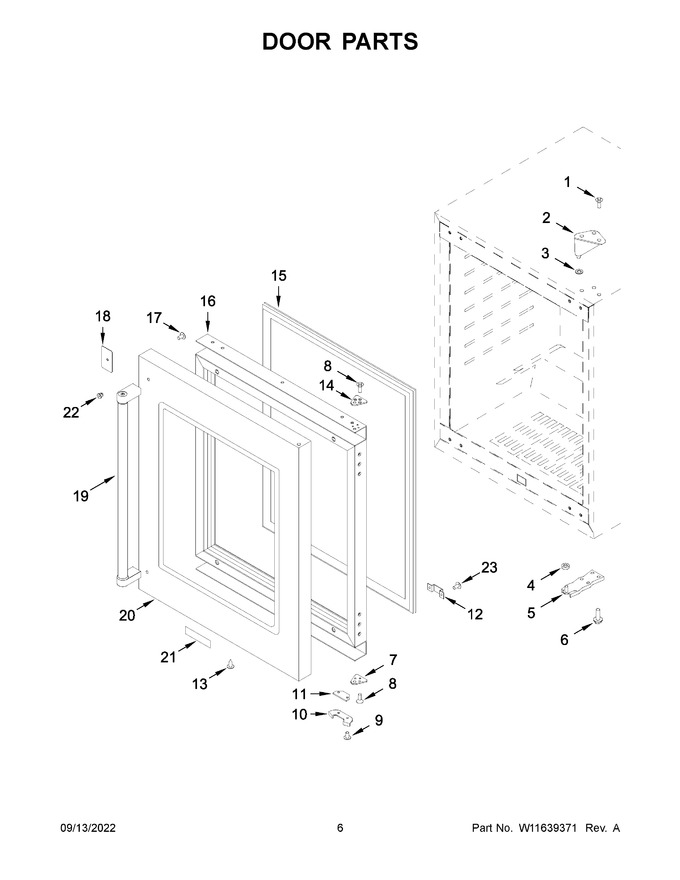

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344796		Screw				$ 16.82
2	4344754		Hinge, Top				$ 89.01
3	4344760		Washer				$ 15.91
4	W11241702		Washer   (Replaces: W10162992)				$ 14.27
5	4344787		Bottom Hinge (left Hinge)				$ 217.36
6	W10780355		Bolt				$ 50.19
7	4344756		Spacer, Bottom Hinge				$ 20.70
8	W10243123		Screw   (Replaces: W10797377)				$ 16.82
9	4344801		Screw				$ 16.82
10	4344758		Door Stop		Appelez-nous	-
11	4344788		Spacer, Door				$ 171.37
12	W10622808		Switch Plate				$ 27.27
13	4344827		Screw		Appelez-nous	-
14	4344755		Spacer, Top Hinge				$ 20.03
15	WPW10624183		Gasket, Door   (Replaces: W10624183)				$ 271.52
16	W11431969		Door Assembly (stainless (right Hinge))   (Replaces: W10805712)				$ 897.32
17	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
18	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
19	W11497229		Handle, Door (stainless)   (Replaces: W11635296)			Immediately	$ 186.18
20	W11164089		Handle, Door (stainless Wrap (right Hinge))   (Replaces: W10797359)				$ 438.67
21	W11179312		Nameplate   (Replaces: W10772910)				$ 93.49
22	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 16.62
23	W10319187		Screw   (Replaces: W10780344)				$ 73.51
16A	W11431237		Door Assembly (stainless (left Hinge))   (Replaces: W10805714)				$ 901.00
20A	W10797360		Handle, Door (stainless Wrap (left Hinge))				$ 768.28
5A	W10239363		Bottom Hinge (right Hinge)				$ 80.61
