01 - Cover Sheet

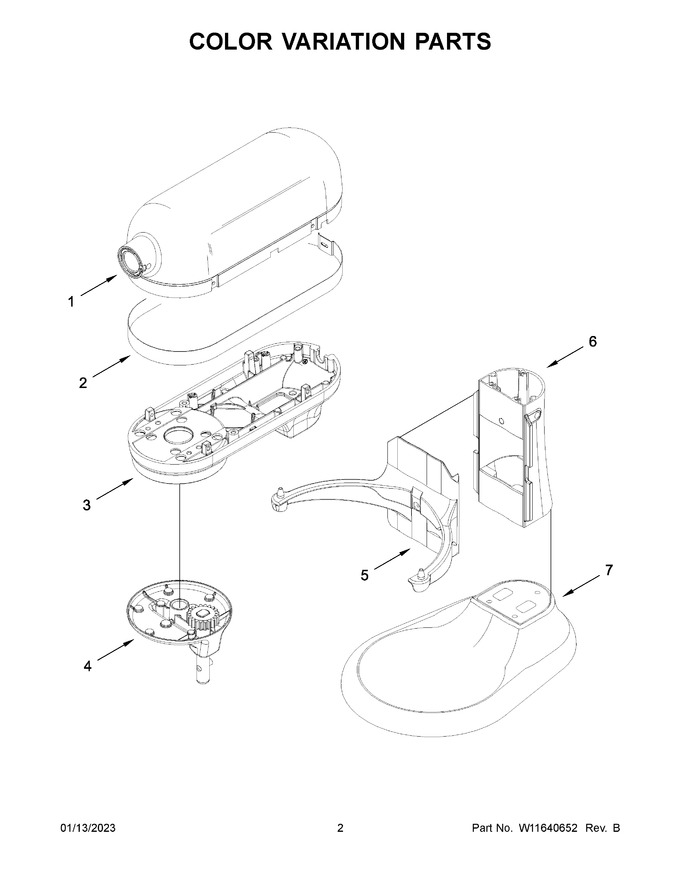

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703532 | Motor Housing (cast Iron Black/imperial Black) |
|
$ 79.38 | |||||
| 2 | W11755731 | Trim Band (bright Aluminum) (Replaces: W11420346) |
|
- | |||||
| 3 | W11520134 | Lower Gearcase (cast Iron Black/imperial Black) |
|
- | |||||
| 4 | W11595416 | Planetary (silent Silver) |
|
$ 77.16 | |||||
| 5 | 9703520 | Bowl Support And Pins (cast Iron Black/imperial Black) |
|
- | |||||
| 6 | 9703526 | Column And Pins (cast Iron Black/imperial Black) |
|
- | |||||
| 7 | 9703511 | Base And Foot Assembly (cast Iron Black/imperial Black) |
|
- |
