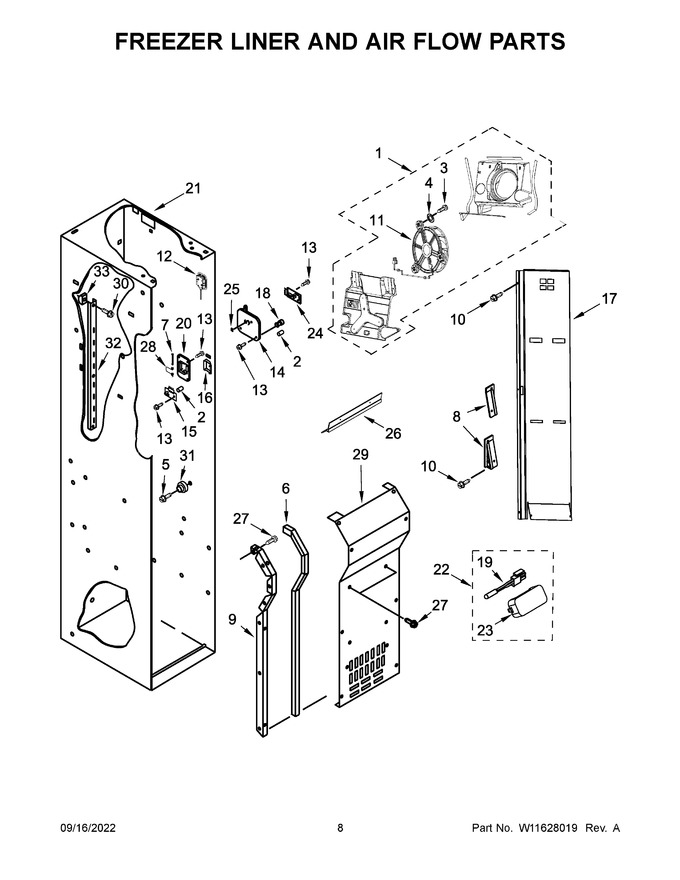

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11631626 | Assembly, Evaporator Fan (Replaces: W11437867) |
|
Immediately | $ 335.73 | ||||
| 2 | 2198665 | Tube, Circuit Board |
|
$ 21.52 | |||||
| 3 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 4 | 3400916 | Washer |
|
- | |||||
| 5 | W10784949 | Screw (black) |
|
$ 11.41 | |||||
| 6 | W11467832 | Gasket, Evaporator Cover |
|
$ 26.94 | |||||
| 7 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 8 | W10769280 | Wedge, Air Duct (left Hand) |
|
- | |||||
| 9 | W11756941 | Rail, Evaporator Cover (left Hand) (Replaces: W11467831) |
|
- | |||||
| 10 | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 18.60 | |||||
| 11 | W11618271 | Fan, Evaporator (Replaces: W11544700) |
|
Immediately | $ 232.03 | ||||
| 12 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 13 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 14 | W11603666 | Cover, Receiver |
|
- | |||||
| 15 | W11629974 | Board, Emitter Circuit (Replaces: W11553040) |
|
Immediately | $ 421.12 | ||||
| 16 | W11603665 | Flipper |
|
- | |||||
| 17 | W11469467 | Duct, Air |
|
$ 94.57 | |||||
| 18 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 8.59 | |||||
| 19 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 20 | W11603664 | Cover |
|
$ 51.67 | |||||
| 21 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 22 | W11759117 | Assembly, Thermistor (Replaces: W11550867) |
|
Immediately | $ 45.05 | ||||
| 23 | W11235125 | Cover, Thermistor (Replaces: W10912104) |
|
$ 108.10 | |||||
| 24 | W11629974 | Board, Receiver Circuit (Replaces: W11553041) |
|
Immediately | $ 421.12 | ||||
| 25 | W11603667 | Slide, Icemaker Shut Off |
|
- | |||||
| 26 | W10745665 | Support, Air Duct |
|
- | |||||
| 27 | W10678210 | Screw (black) |
|
$ 19.80 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 29 | W11460632 | Cover, Evaporator |
|
- | |||||
| 30 | W10678207 | Screw (Replaces: W10832438) |
|
$ 16.43 | |||||
| 31 | W10789219 | Assembly, Shelf Stud (includes Screw) |
|
$ 25.43 | |||||
| 32 | W11481486 | Ladder, Shelf |
|
- | |||||
| 33 | 2259445 | Support, Ladder |
|
- | |||||
| 8A | W10769279 | Wedge, Air Duct (right Hand) |
|
- | |||||
| 9A | W11756942 | Rail, Evaporator Cover (right Hand) (Replaces: W11467830) |
|
- |
