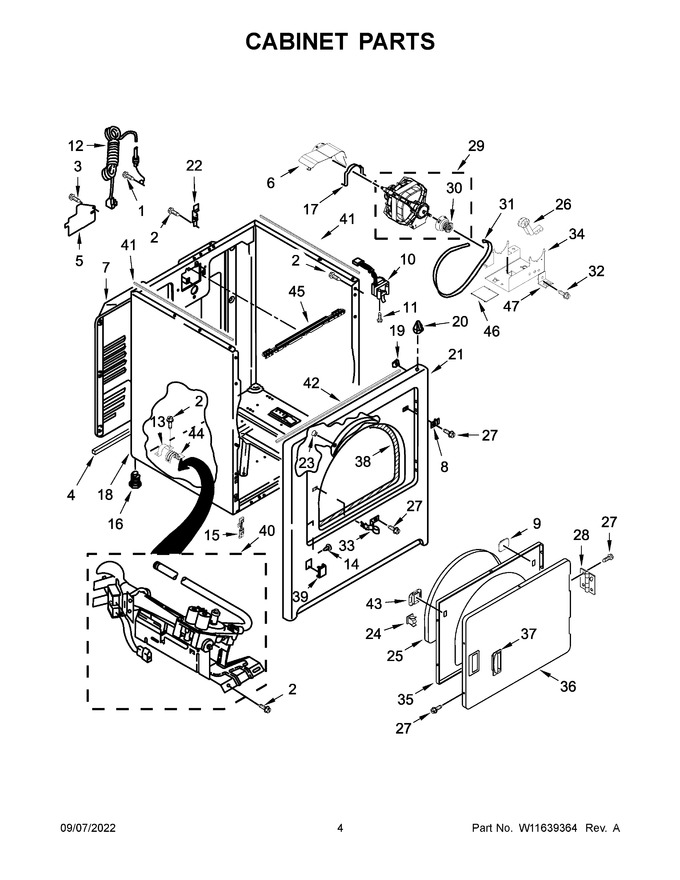

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 2 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 48.68 | ||||
| 5 | W11736322 | Cover, Terminal Block (Replaces: 8558833) |
|
- | |||||
| 6 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 7 | W11626083 | Panel, Rear (Replaces: W11598681) |
|
$ 122.60 | |||||
| 8 | W11684591 | Plug, Strike (Replaces: W10567345) |
|
Immediately | $ 7.32 | ||||
| 9 | W11173656 | Cover, Door Catch (Replaces: W10529198) |
|
$ 7.38 | |||||
| 10 | W11627522 | Switch, Door (Replaces: W11590193) |
|
- | |||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 12 | W11222083 | Cord, Power (Replaces: W10869141) |
|
$ 113.96 | |||||
| 13 | 341029 | Clamp, Pipe |
|
- | |||||
| 14 | W11481394 | Hinge Hole Cover (white) (Replaces: W11308618) |
|
$ 20.15 | |||||
| 15 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 14.71 | ||||
| 16 | W11025920 | Foot, Dryer (Replaces: W10779369) |
|
Immediately | $ 22.22 | ||||
| 17 | 3401800 | Shield, Belt Assembly |
|
- | |||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
$ 18.43 | |||||
| 21 | W10248059 | Panel, Front (white) (Replaces: W10664698) |
|
$ 364.46 | |||||
| 22 | W11715722 | Hinge, Top (Replaces: W10641296) |
|
$ 7.37 | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 24 | W11429587 | Assembly, Door Catch (Replaces: W11224630) |
|
Immediately | $ 23.90 | ||||
| 25 | W10861521 | Seal, Door (Replaces: W10730752) |
|
Immediately | $ 64.11 | ||||
| 26 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 28 | WPW10362431 | Assembly, Hinge And Pin (white) (Replaces: W10362431) |
|
Immediately | $ 7.45 | ||||
| 29 | WPW10396039 | Motor Assembly 60 Hz. (Replaces: W10396039) |
|
$ 228.38 | |||||
| 30 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 46.15 | ||||
| 31 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 32 | 3400500 | Bolt |
|
Immediately | $ 12.64 | ||||
| 33 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 19.83 | ||||
| 34 | 3401801 | Base, Motor |
|
$ 107.37 | |||||
| 35 | WPW10463967 | Door, Inner (Replaces: W10463967) |
|
$ 207.63 | |||||
| 36 | W10861224 | Door, Front (white) (Replaces: W10714510) |
|
$ 242.12 | |||||
| 37 | W10861225 | Handle, Door (white) (Replaces: W10714516) |
|
Immediately | $ 48.83 | ||||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 87.58 | ||||
| 39 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 14.85 | |||||
| 40 | W10823508 | Burner Assembly (60 Hz) (type 1) (white Rodgers) (Replaces: 8318272) |
|
$ 487.12 | |||||
| 41 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 7.61 | ||||
| 42 | W10316619 | Seal, Spill Guard |
|
Immediately | $ 25.39 | ||||
| 43 | WPW10529197 | Bezel, Door Catch (Replaces: W10529197) |
|
Immediately | $ 22.91 | ||||
| 44 | W10727507 | Clamp, Pipe |
|
- | |||||
| 45 | W10641295 | Bracket, Rear |
|
$ 37.71 | |||||
| 46 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 20.96 | |||||
| 47 | 3401805 | Bracket, Idler |
|
- |
