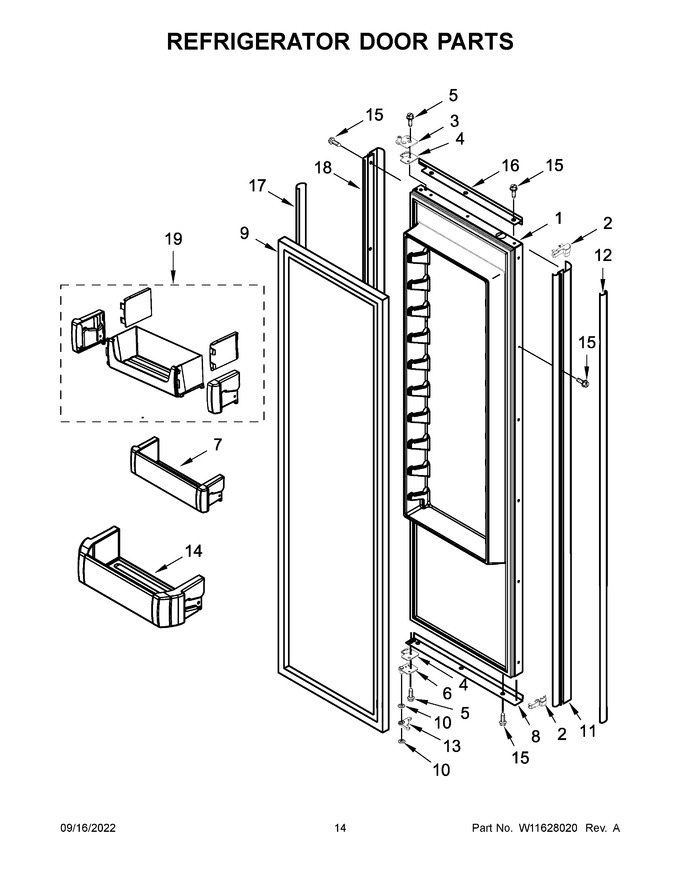

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633393		Door, Refrigerator   (Replaces: W11576682)			Immediately	$ 1,303.41
2	2207457		Trim, Corner				$ 51.41
3	W10484480		Assembly, Top Hinge				$ 57.64
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2252293		Assembly, Bottom Hinge		Appelez-nous	-
7	W11408937		Bin, Shallow Door				$ 163.76
8	2309492S		Trim, Bottom Door (aluminum)		Appelez-nous	-
9	W11627244		Gasket, Door (grey)   (Replaces: W10764832)				$ 340.17
10	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
11	2309497S		Trim, Door (handle Side) (aluminum)				$ 290.72
12	2314003S		Cover, Trim (handle Side) (aluminum)				$ 157.17
13	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
14	W11408929		Bin, Gallon Door				$ 165.10
15	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
16	2309486S		Trim, Top Door (aluminum)		Appelez-nous	-
17	2259448S		Trim, Cover (hinge Side) (aluminum)				$ 161.55
18	2309498S		Trim, Door (hinge Side) (aluminum)				$ 291.94
19	W11631253		Assembly, Top Door Bin   (Replaces: W11610620)				$ 123.52

    View Diagram in Separate Window       Print Part List
