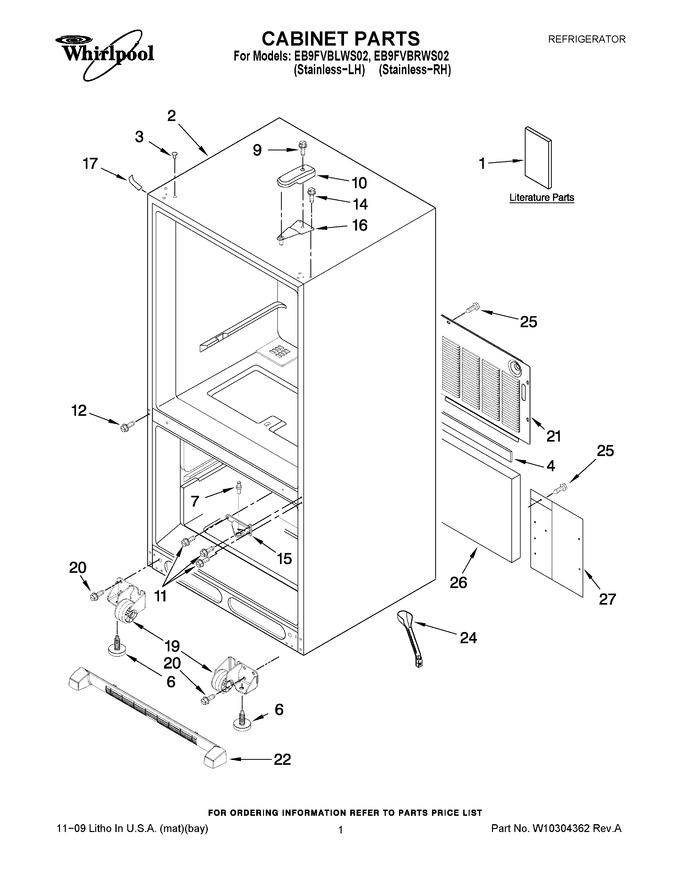

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208431 | Use & Care Guide |
|
- | |||||
| 1 | W10279329 | Tech Sheet |
|
- | |||||
| 1 | W10245041 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 6 | 10354002 | Foot, Brake |
|
Immediately | $ 7.38 | ||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 8.27 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 19 | 12580304 | Roller Assembly |
|
$ 5.84 | |||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 22 | 12734404B | Grille, Toe (black) |
|
- | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210987) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 |
