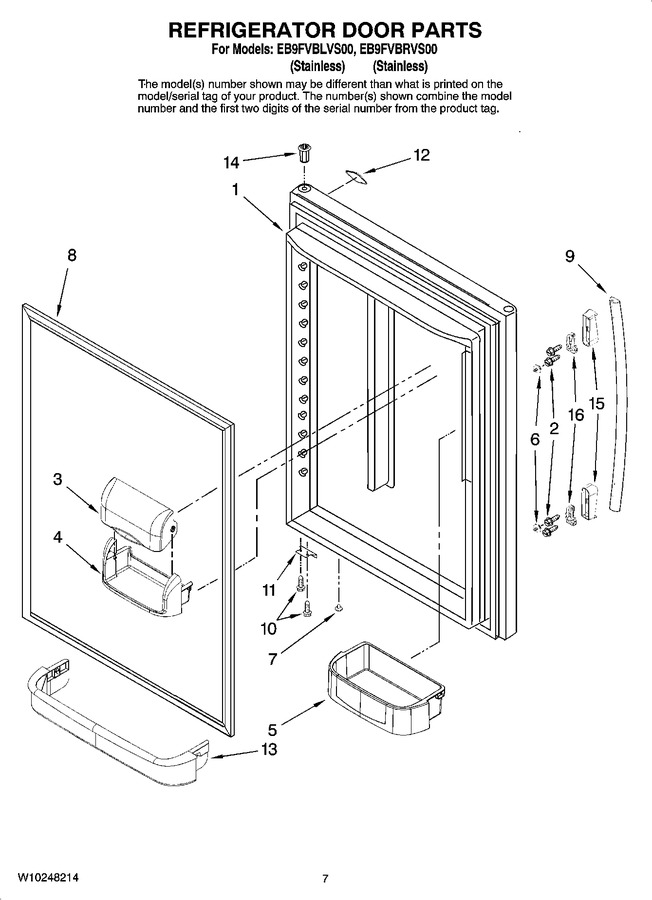

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023858SQ		Door, Refrigerator (stainless (for Eb9fvbrvs00))				$ 438.59
1	13023859SQ		Door, Refrigerator (stainless (for Eb9fvblvs00))				$ 421.73
2	W10267047		Screw, Handle   (Replaces: W10201588)				$ 12.83
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	WP67001021		Bucket, Door (medium (2))   (Replaces: 67001021)				$ 80.90
5	67001141		Bucket, Door (small (2))			Immediately	$ 75.15
6	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.07
7	67004838		Plug, Button (2) (black)				$ 10.68
8	WPW10436245		Gasket, Door (black)   (Replaces: W10164031)				$ 345.10
9	W11351147		Handle, Door (stainless)   (Replaces: W10157430)				$ 188.78
10	WP98165		Screw   (Replaces: 67006287)				$ 8.00
11	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.05
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
13	12690501		Retainer, Ref Door				$ 41.75
14	67004978		Bushing (2) (black)				$ 21.05
15	W10172585		Endcap, Handle				$ 27.18
16	13067102SP		Clip, Handle				$ 27.57
