SELECT A DIAGRAM
New Model Search:

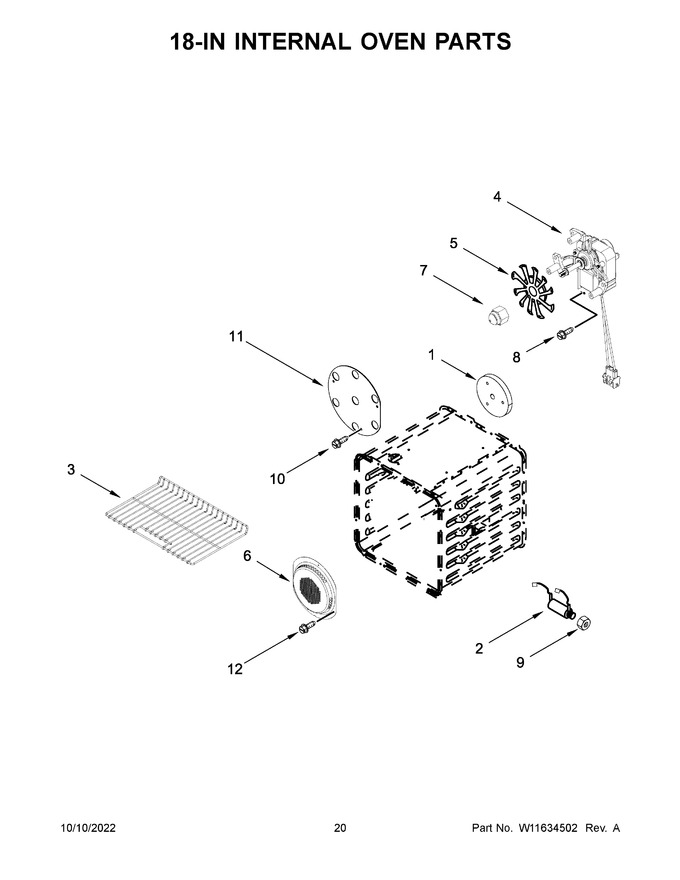

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 27.10 | ||||
| 2 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 3 | W10570879 | Rack, Oven (18 In) |
|
$ 130.48 | |||||
| 4 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 332.30 | ||||
| 5 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 6 | W11211948 | Cover, Fan |
|
- | |||||
| 7 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 13.14 | |||||
| 8 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 9 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 13.47 | |||||
| 10 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 | |||||
| 11 | W10261523 | Plate, Fan |
|
$ 77.85 | |||||
| 12 | W10739592 | Screw |
|
- |
