Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13023887SQ Door, Refrigerator (stainless-(lh)) Appelez-nous -
1 13023886SQ Door, Refrigerator (stainless-(rh)) Appelez-nous -
2 67006901 Screw, Handle   (Replaces: 12991703) In-Stock Immediately $ 9.49

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WP67001021 Bucket, Door (medium (2))   (Replaces: 12557204V) Special Order $ 84.95

5 67001141 Bucket, Door (small (2))   (Replaces: 12557202) In-Stock Immediately $ 78.91

8 WPW10436245 Gasket, Door (black)   (Replaces: W10164031) Special Order $ 362.36

9 W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 198.22

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

12 WP2213265 Nameplate   (Replaces: 2255121) In-Stock Immediately $ 93.18

13 12690501 Retainer, Ref Door Special Order $ 41.75

14 67004978 Bushing (2) (black)   (Replaces: 10961006B) Special Order $ 22.10


    View Diagram in Separate Window     Print Icon   Print Part List

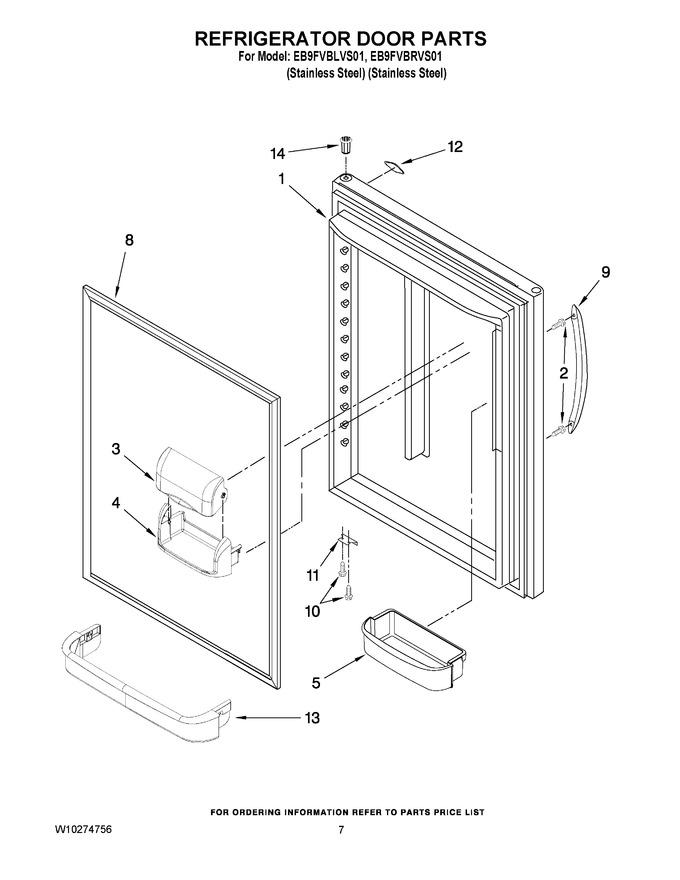

Diagram for EB9FVBRVS01
