01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

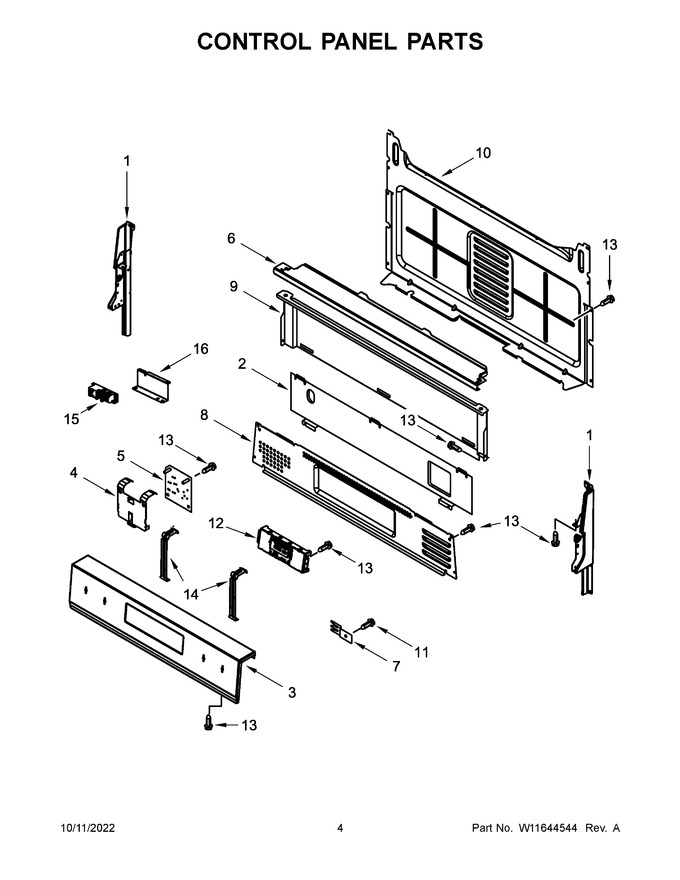

| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 2 | 8053505 | Shield, Heat |
|
$ 165.89 | |||||
| 3 | W11026866 | Panel, Control (stainless) (Replaces: W10835288) |
|
$ 540.10 | |||||
| 4 | W10762981 | Bracket, Mounting |
|
$ 76.42 | |||||
| 5 | W11162730 | Module, Spark Dsi (Replaces: W10920631) |
|
Immediately | $ 218.43 | ||||
| 6 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 7 | 8523412 | Bracket, Rear Cooktop |
|
$ 167.90 | |||||
| 8 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 9 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 10 | W10184370 | Cover, Back |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 12 | W11621746 | Control, Electronic (lcx) (black) (Replaces: W11520695) |
|
$ 373.35 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 15 | WPW10475149 | Module, Spark (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 16 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 |
