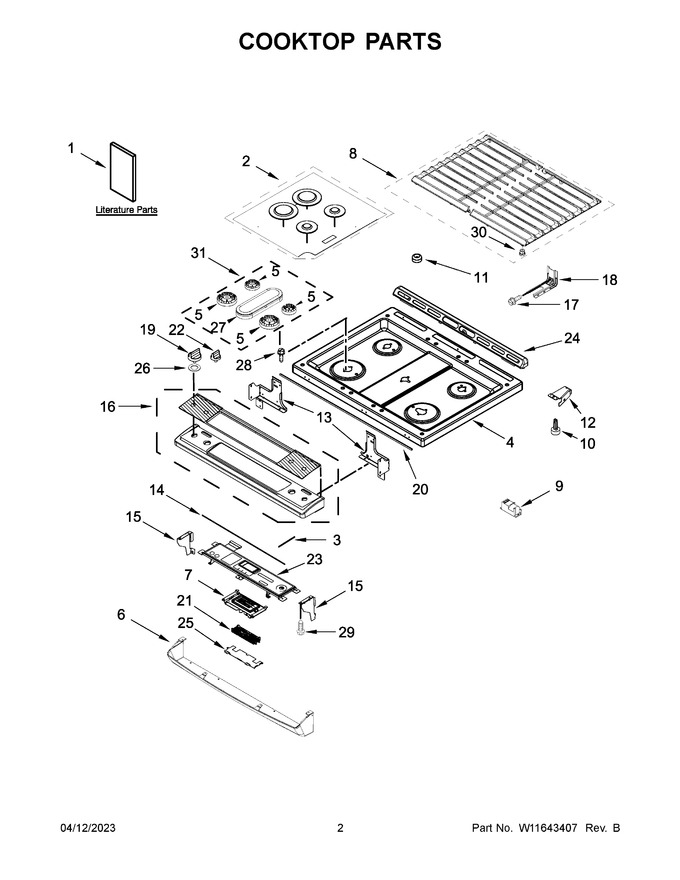

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426594 | Owners Manual |
|
- | |||||
| 2 | W11605759 | Kit, Burner Cap (black (set Of 4)) (Replaces: W11498499) |
|
Immediately | $ 75.35 | ||||
| 3 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 4 | W11450806 | Cooktop (black) (Replaces: W11341033) |
|
$ 419.70 | |||||
| 5 | W11435630 | Spreader, Flame (left Front And Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 6 | W11218703 | Panel, Lower Console (black) (Replaces: W10570527) |
|
Immediately | $ 162.27 | ||||
| 7 | W11122852 | Assembly, Display (Replaces: W10759327) |
|
Immediately | $ 527.64 | ||||
| 8 | W11449027 | Kit, Grate (black) (Replaces: W11353423) |
|
$ 375.65 | |||||
| 9 | WPW10475149 | Module, Spark (Replaces: W10475149) |
|
Immediately | $ 217.24 | ||||
| 10 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 11 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 30.05 | |||||
| 14 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W10680371 | Assembly, Console (stainless) |
|
$ 509.33 | |||||
| 17 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 18 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 19 | W11620678 | Knob (stainless) (Replaces: W11514180) |
|
$ 71.85 | |||||
| 20 | W11620671 | Gasket, Console And Cooktop (Replaces: W11512127) |
|
$ 25.12 | |||||
| 21 | W11620674 | Control, Electronic (Replaces: W11541190) |
|
$ 370.78 | |||||
| 22 | W11620679 | Knob, Mini (stainless) (Replaces: W11514230) |
|
- | |||||
| 23 | W11049250 | Assembly, Overlay (stainless) (Replaces: W10888920) |
|
Immediately | $ 384.38 | ||||
| 24 | W11256338 | Trim, Vent (black) (Replaces: W10577781) |
|
$ 205.56 | |||||
| 25 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 26 | W11131701 | Bushing (black) (Replaces: W10739036) |
|
$ 23.27 | |||||
| 27 | W11435660 | Spreader, Flame (Replaces: W11367086) |
|
Immediately | $ 98.56 | ||||
| 28 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 29 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 30 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 31 | W11575584 | Burner Kit (Replaces: W11368533) |
|
$ 185.10 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W11563527 | Bracket, Support (right) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 15B | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 1A | W11565457 | Tech Sheet |
|
- | |||||
| 1B | W11427472 | Quick Start Guide |
|
- | |||||
| 5A | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| 5B | W11435659 | Spreader, Flame (left Rear) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 9A | W10860916 | Module, Spark (0 Plus 2) (Replaces: W10457998) |
|
Immediately | $ 345.26 | ||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11198972 | Harness, Bake And Broil (Replaces: W10754419) |
|
$ 35.84 | |||||
| NI | W11456866 | Harness, Main |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 75.29 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W10580265 | Harness, Bake/warm Drawer |
|
Immediately | $ 88.03 | ||||
| NI | W10580229 | Wire, Ground |
|
$ 38.22 | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 |
